9.1 Network Configuration Tool─NWCONFIG
9.1.1 Introduction of NWCONFIG
NWCONFIG is the network configuration tool provided by ISPSoft. Users can configure the network in a
project and set up a mechanism for data exchange through NWCONGIF. The functions of NWCONFIG are
listed below. They will be described in the following sections.
(a) Creating networks in a project, and selecting paths along which data is sent
(b) Performing data exchange through an RS-485 cable─PLC Link
(c) Performing data exchange through Ethernet─Ether Link
NWCONFIG is used to create a network framework for projects, and therefore it is at the top of the project
management area. If users want to start NWCONGIF, they can double-click NWCONFIG in the project
management area.

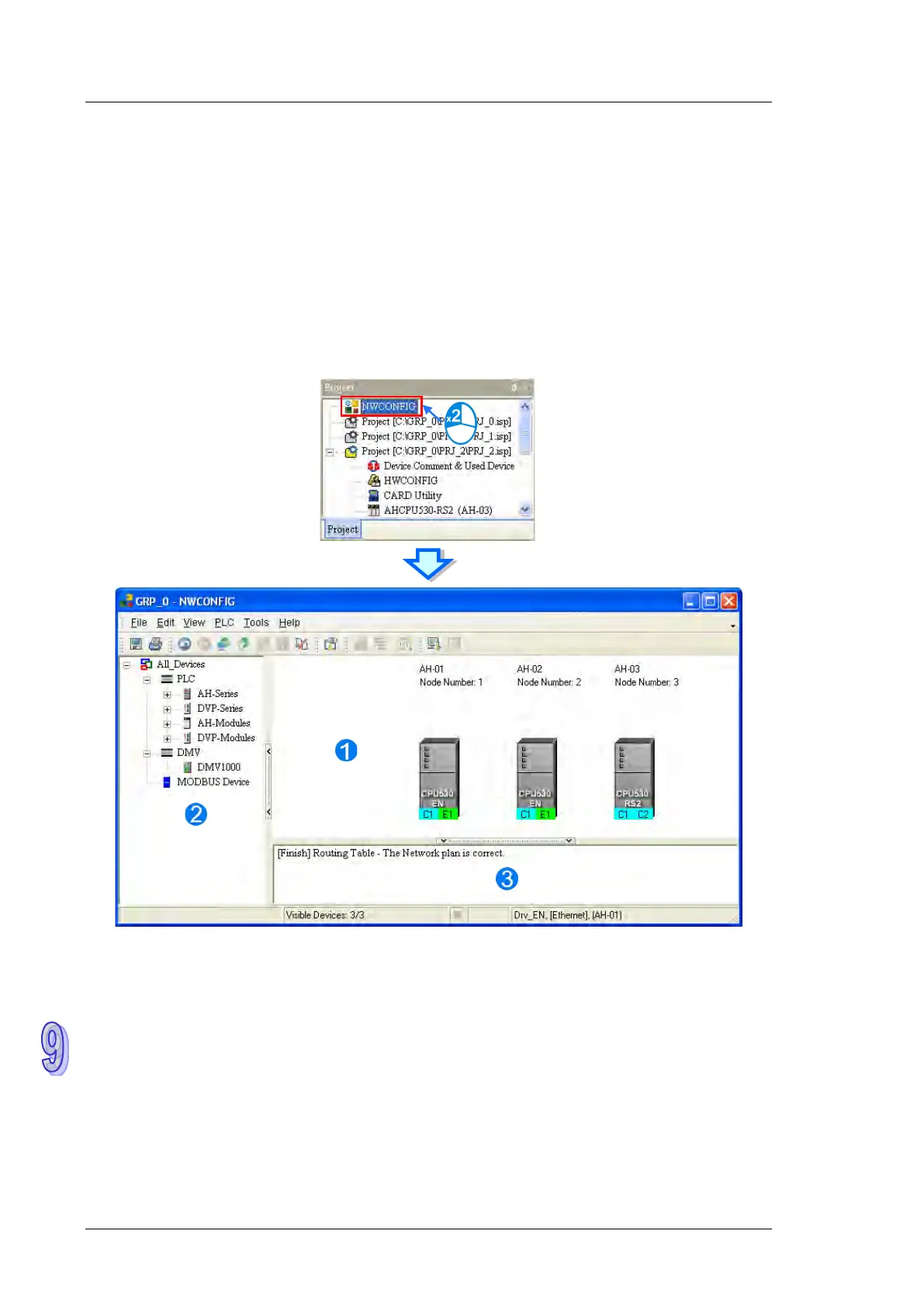

Working area: It is a main working area. Users can create a network framework in this area.
Device list: All the devices which can be used are listed in a catalog.
Message display area: The messages related to operation are displayed in this area.
