AH500 Hardware and Operation Manual
6-4
6.3
Creating a Project

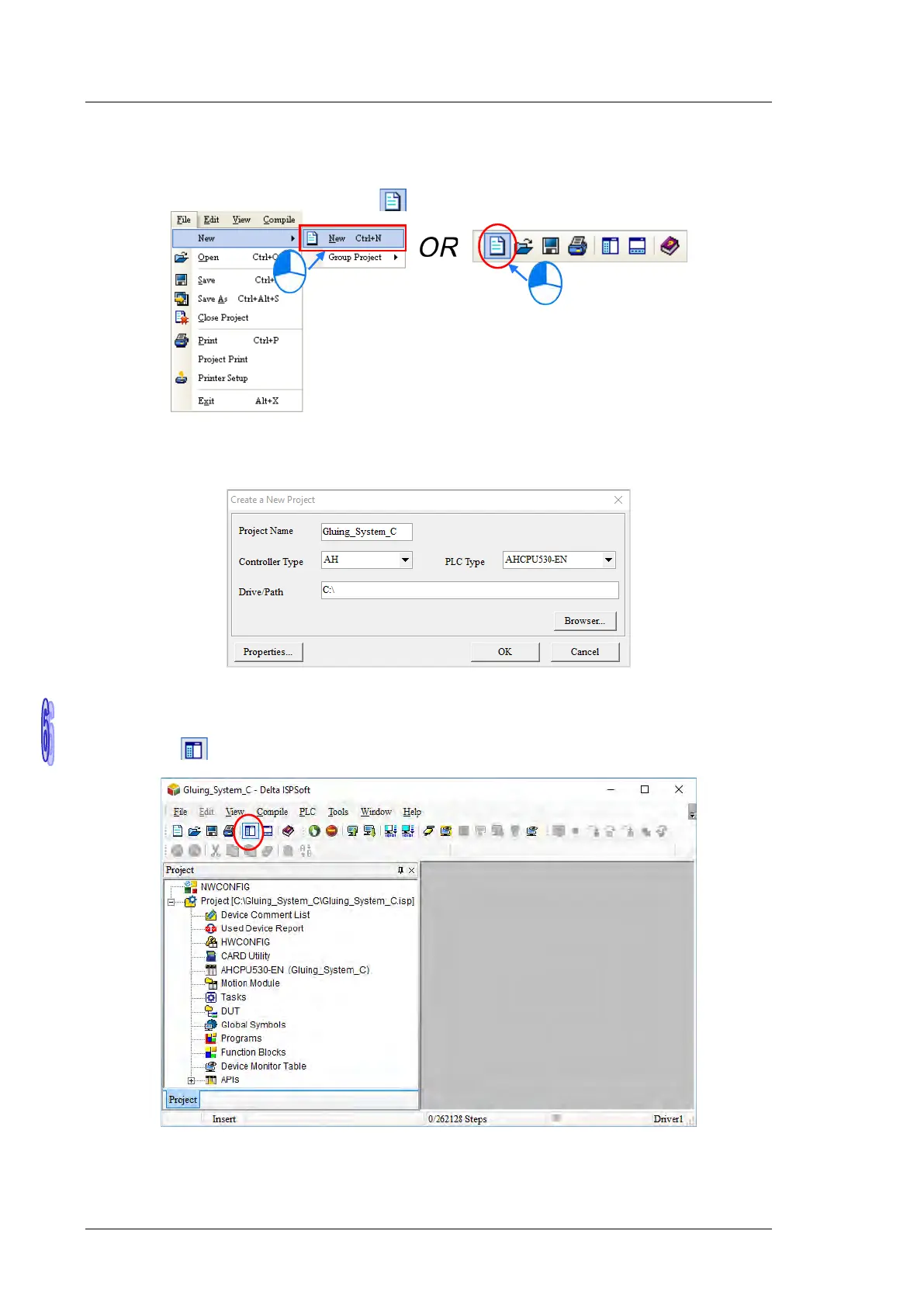

After ISPSoft is started, users can click the File menu, point to New, and click New to create a new project.
They can also create a new project by clicking on the toolbar after ISPSoft is started.
In the Create a New Project window, type a project name in the Project Name box and a path in the
Drive/Path box, select a PLC in the Controller Type drop-down list box, and click OK. (The PLC used in this
example is AHCPU530-EN.)
After the project is created successfully, a project management area will appear at the left side of the main
screen. The relation between the items listed in the project management area is represented by a hierarchical
tree structure. If the project management area does not appear, the users can click Workspace on the View
menu, or click on the toolbar.
