Delta AH500 Hardware Operation Manual

Chapter 9 Network Configuration
9-15
 Method 2

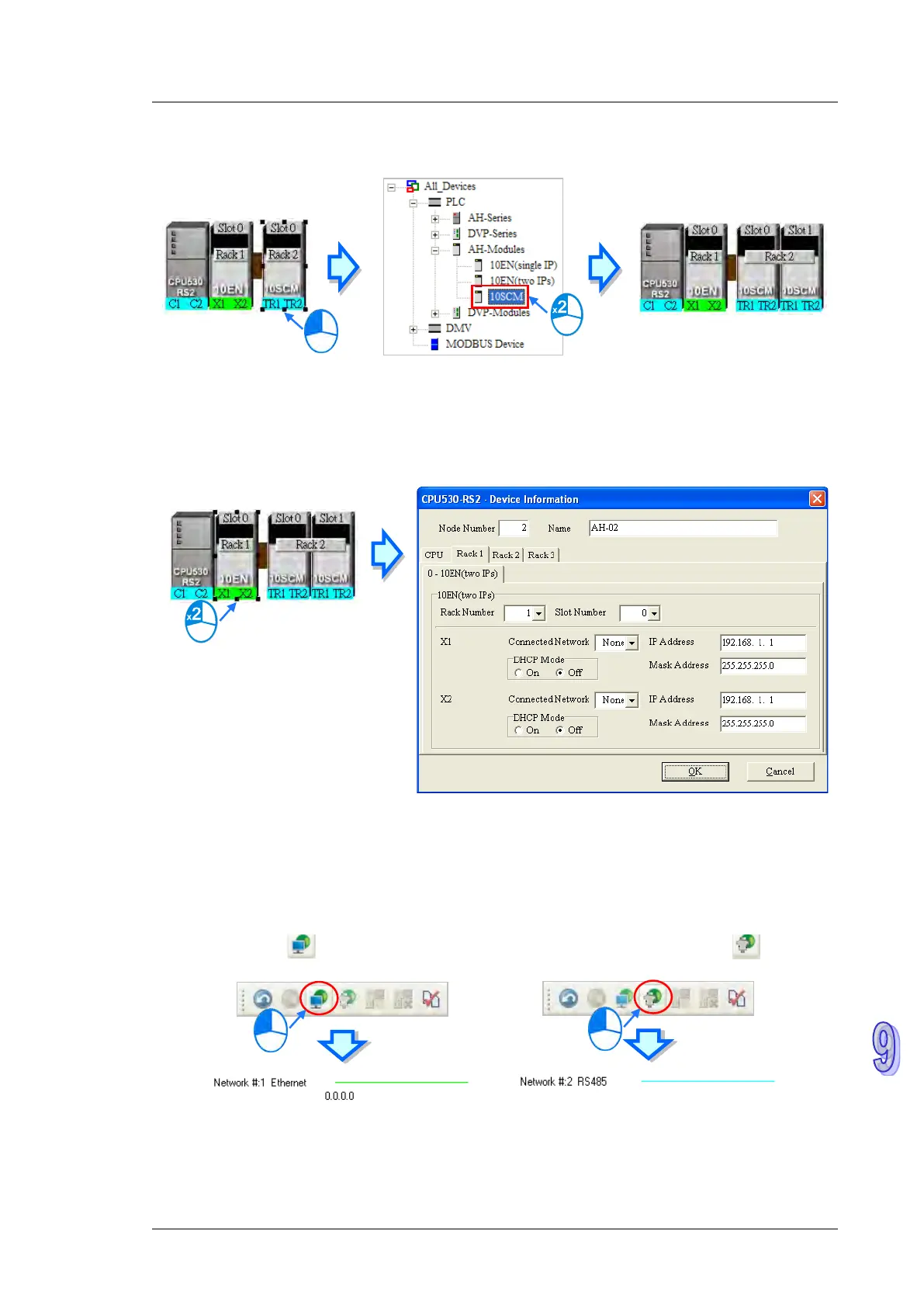

Select a PLC or a rack in the working area, and then double-click a network module on the device list.
After the users add a network module to a node, the slot in which the network module is installed, and the
backplane on which the network module is installed may be different from the actual slot in which the
network module is installed, and the actual backplane on which the network module is installed. The users
have to adjust the properties of the node. Please refer to section 9.2.4 for more information about setting
properties of a node, and section 9.2.2 for more information about the marking of a port in NWCONFIG.
9.2.2 Connecting to a Network
After users deploy the nodes in the NWCONFIG window, they can connect the nodes to the networks
designed.
There are three ways to add a network to the working area. There are Ethernet networks and RS-485
networks.
 Method 1
After users click on the toolbar, an Ethernet network is added. After the users click on the
toolbar, an RS-485 network is added.
