Chapter 11 Convenient Functions
11-39

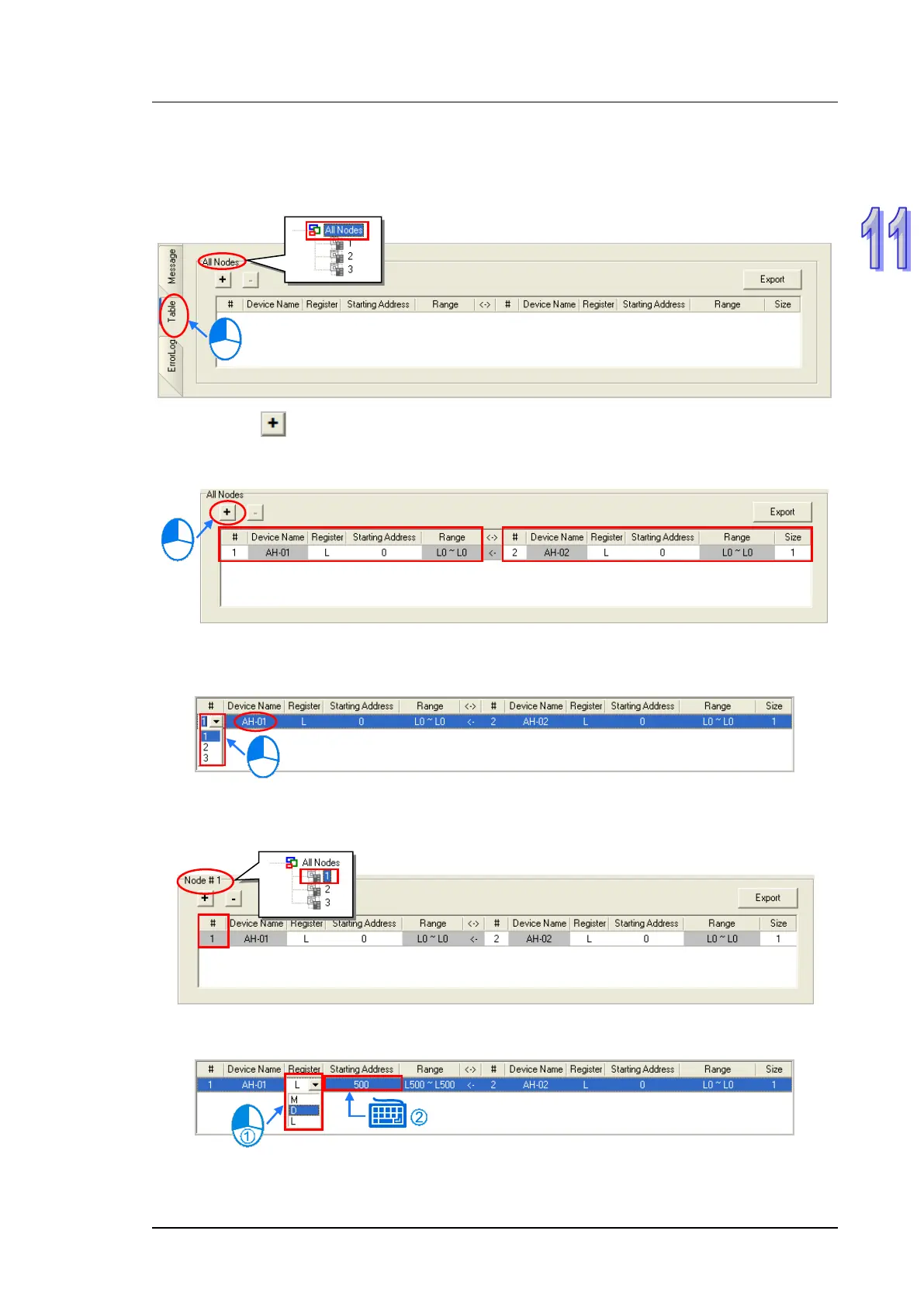

11.2.2.3 Creating and Managing a Data Exchange Table
If users want to create a data exchange table, they have to click the Table tab in the information area. The node
which is selected on the node list is shown in the upper left corner of the information area. The data in the table
is related to the node selected.
If the users click , a new piece of data will be added to the table. A piece of data is composed of two parts.
The left part of the data in the figure below indicates that the data demanding node AH-01 will store the data
demanded in L0 in itself, and the right part of the data in the figure below indicates that the data supply node
AH-02 will supply the data in L0 in itself.
The steps of setting a data exchange group are as follows.
(1) Select a node number in the # cell for the data demanding node. After the users select a node number, the
PLC name corresponds to the node number will be appear in the Device Name cell for the node number.
If the users select a specific node number rather than All Nodes on the node list, the data in the table will
be related to the specific node number selected, and the fixed node number in the # cell for the data
demanding node will be the specific node number selected on the node list.
(2) Select a device type in the Register cell for the data demanding node, and type an address in the Starting
Address cell for the data demanding node.
Users
can type
