AH500 Hardware and Operation Manual
5-18

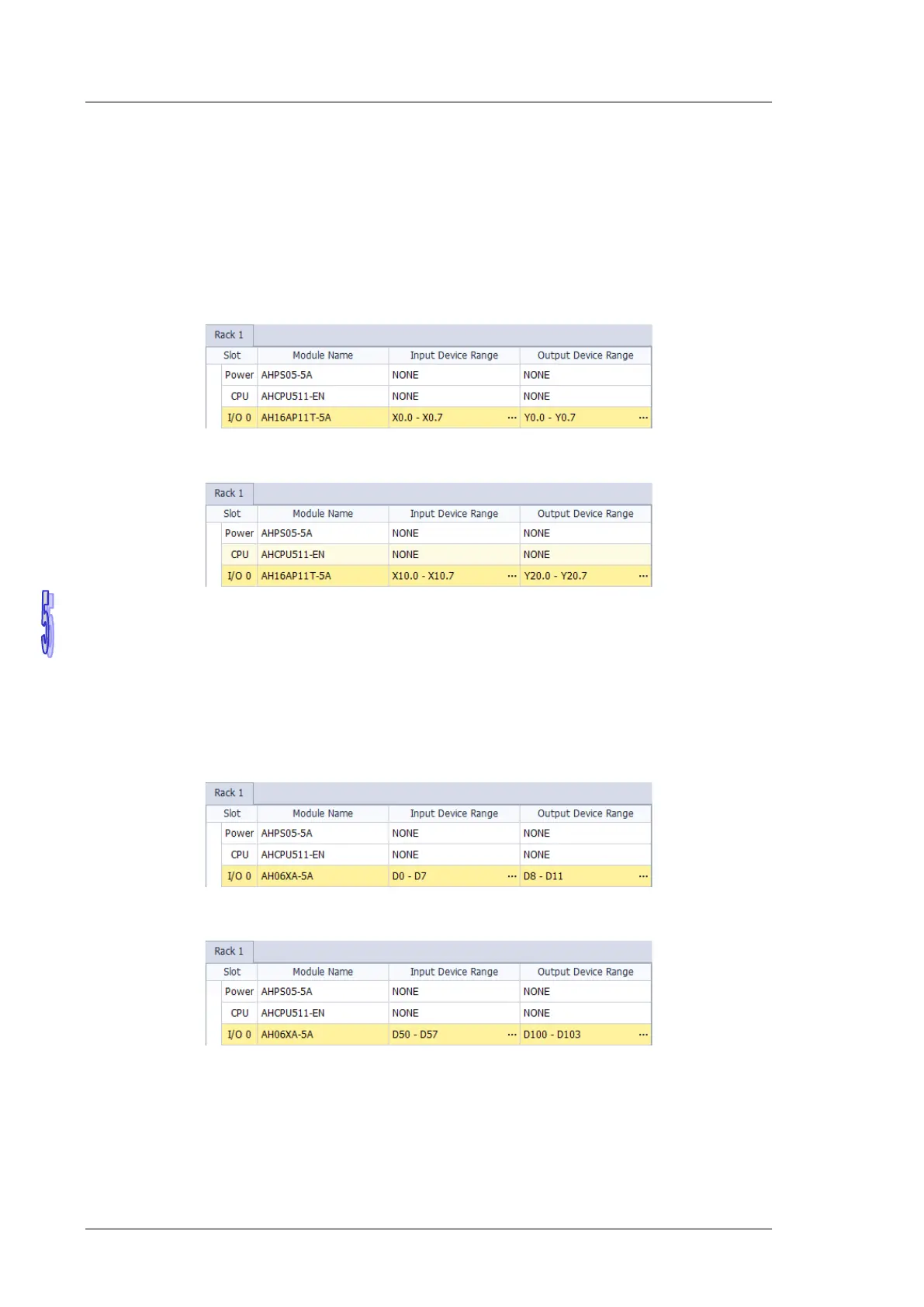

5.5 User-defined Addresses
5.5.1 Start Addresses for Digital Input/Output Modules
Users can assign input devices and output devices to a digital input/output module through HWCONFIG in
ISPSoft. The input devices should be in the range of
Xn.0 and the output devices should be in the range of to
Yn.0; n indicates any integer between 0 and 511. Take AH16AP11R-5A for instance. The original input
devices are X0.0~X0.7, and the original output devices are Y0.0~Y0.7. Users can change the input device
range from X10.0 to X10.7, and change the output device range from Y20.0~Y20.7.
 Default input/output device range: X0.0~X0.7 and Y0.0~Y0.7
 User-defined input/output device range: X10.0~X10.7, and Y20.0~Y20.7
5.5.2 Start Addresses for Analog Input/Output Modules
Users can assign input registers and output registers to an analog input/output module through HWCONFIG in
ISPSoft. The input registers and the output registers should be in the range of D0 to D65535. Take AH06XA-
5A for instance. The original input registers are D0~D7, and the original output registers are D8~D11. Users
can change the input device range from D0~D7 to D50~D57, and change the output device range from
D8~D11 to D100~D103.
 Default input/output device range: D0~D7, and D8~D11
 User-defined input/output device range: D50~D57, and D100~D103
