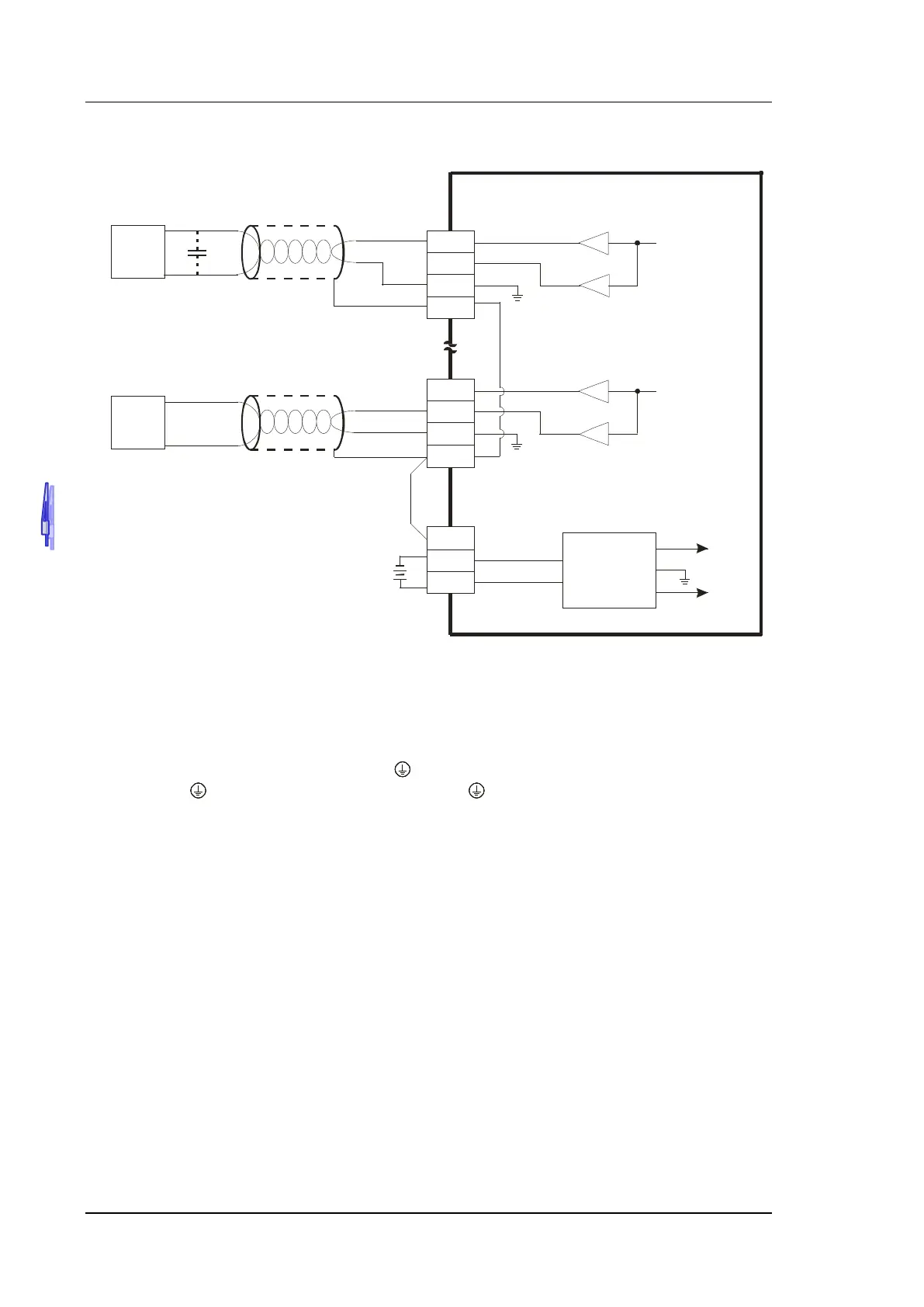

4.9.4 Wiring AH04DA-5A/AH08DA-5A
Shielded c able*1
Voltage output
Shielded c able*1
Current output
VO3
IO3
AG
CH3
0mA~20mA
CH3
AG
VO0
IO0
AG
CH0
-10V~+10V
*2
CH0
AG
ZP
UP
24VDC
DC/DC
+15V
-15V
AG
SG
SLD
SLD
*3
Converter
AC motor drive,
recorder,
proportioning v alve
AC motor drive,
recorder,
proportioning v alve
*1. Please use the shielded cables to isolate the analog output signal cable from other power cables.
*2. If a ripple is large for the input terminal of the load and results in the noise interference with the wiring,
please connect the module to the capacitor having a capacitance in the range of 0.1 μF to 0.47 μF with a
working voltage of 25 V.
*3. Please connect the terminal SLD to the terminal SG. Once AH04DA-5A is installed on a backplane, the
terminal SG on AH04DA-5A and the terminal
on the backplane will be short-circuited. Please connect
the terminal on the backplane to the ground terminal .
