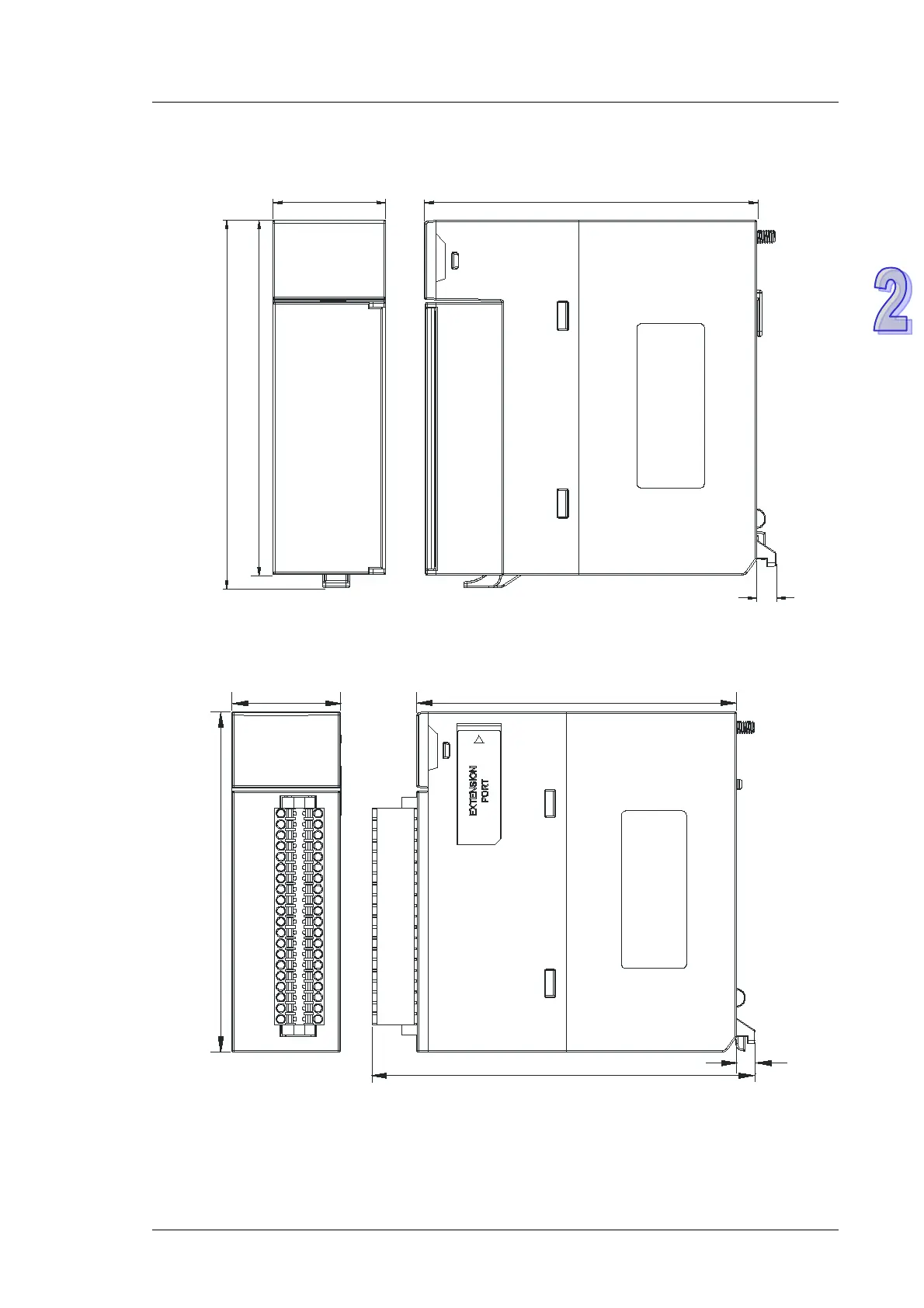

2.7.3 29BDimensions
 AH04AD-5A/AH08AD-5B/AH08AD-5C/AH04DA-5A/AH08DA-5B/AH08DA-5C/AH06XA-5A
35
103
110
114
6
Unit: mm
 AH08AD-5A/AH08DA-5A
6
35
110
123.4
103
Unit: mm
