5.4.5 Start Addresses for Network Modules

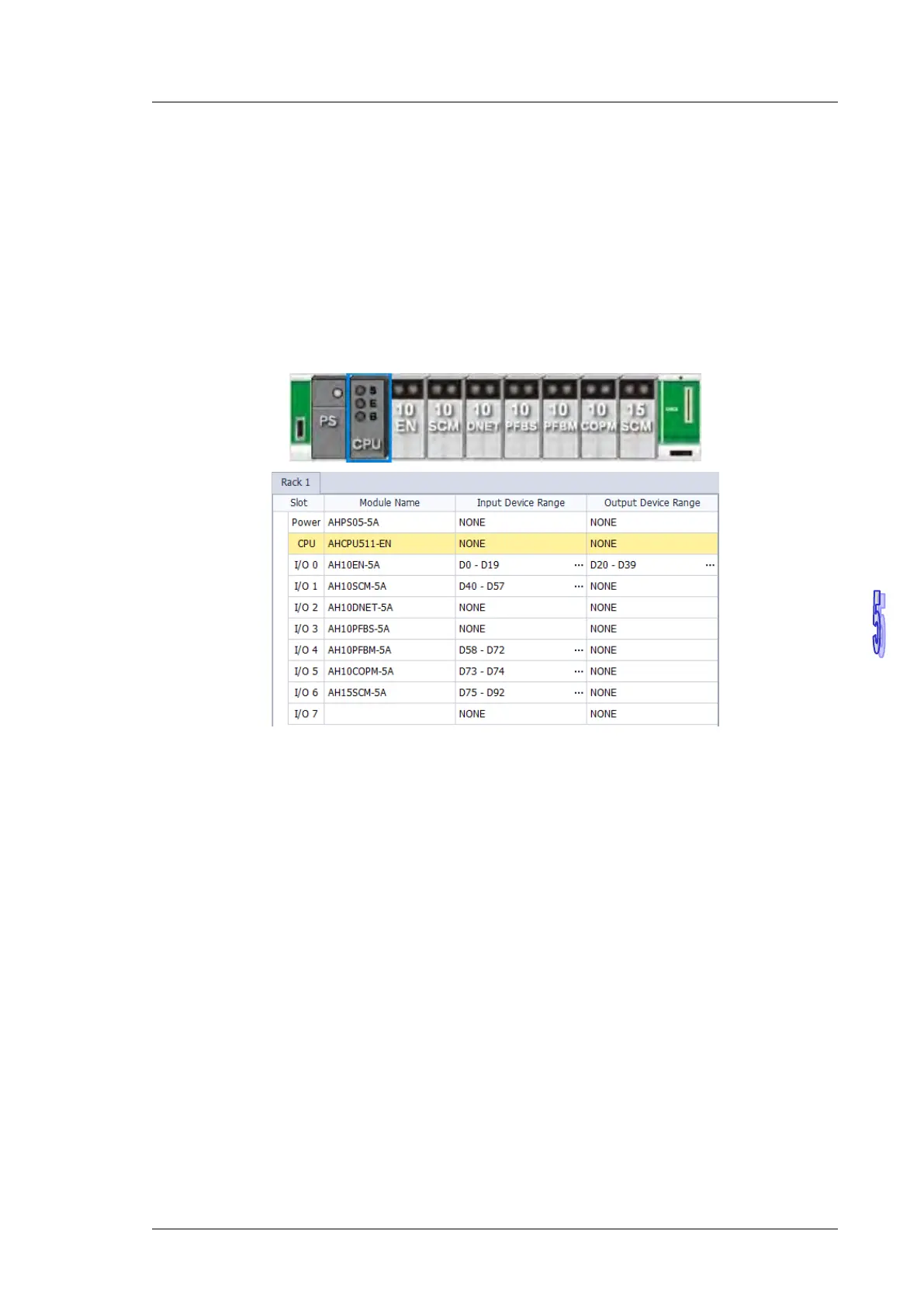

Input/Output data registers are automatically assigned to a network module through HWCONFIG in ISPSoft
according to the number of registers which is defined for the network module.
 AH10/15EN-5A: The input device range occupies 20 data registers, and the output device range occupies
20 data registers.
 AH10/15SCM-5A: The input device range occupies 18 data registers.
 AH10DNET-5A: No input registers and no output registers are assigned to it.
 AH10PFBS-5A: No input registers and no output registers are assigned to it.
 AH10PFBM-5A: The input device range occupies 15 data registers.
 AH10COPM-5A: The input device range occupies 2 data registers.
 15SCM: The input device range occupies 18 data registers.
