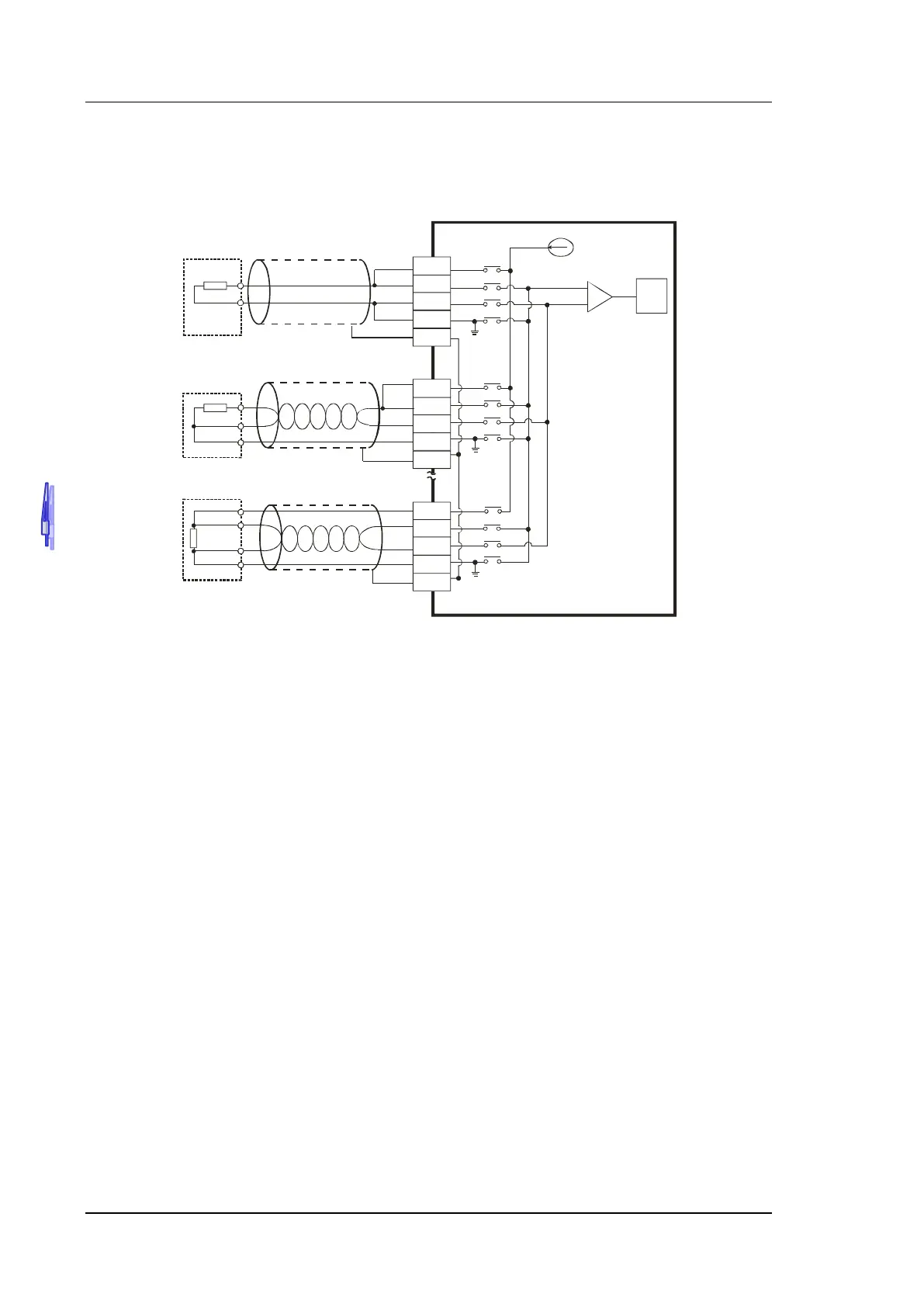

4.10 Wiring Temperature Measurement Modules
4.10.1 Wiring AH04PT-5A
Shielded c able * 1
1.53mA
(Ni100Pt100,
Resistor)/
204.8uA
(Pt1000)*3
,
AG
ADC
AG
INA
AG
CH0
0~300
Ni100/Ni1000
Pt100/Pt1000
Ω
O0+
I0+
I0-
O0-
FG
2-Wire
CH1
0~300
Ni100/ Ni1000
Pt100/ Pt1000
Ω
O1+
I1+
I1-
O1-
FG
3-Wire
CH3
O3+
I3+
I3-
O3-
FG
4-Wire
Ni100/Ni1000
Pt100/Pt1000*2
Shielded c able * 1
Shielded c able * 1
*1. The cable connected to the input terminal should be the cable or the shielded twisted pair cable which can
be connected to an Ni100/Ni1000/Pt100/Pt1000 sensor, and should be kept separate from other power
cables and cables which generate noise. Please use a three-wire temperature sensor. If users want to use
a two-wire temperature sensor, On+ and In+ must be short-circuited, and On- and In- must be short-
circuited. (n is in the range of 0 to 3.)
*2. If users want to measure resistance in the range of 0 Ω to 300 Ω, they can use a two-wire or three-wire
sensor instead of a four-wire sensor.
*3. Users need to select an appropriate sensor. If an Ni100 temperature sensor, a Pt100 temperature sensor,
or a resistance sensor is used, the internal excitation current is 1.53 mA. If an Ni1000 temperature sensor,
or a Pt1000 temperature sensor is used, the internal excitation current is 204.8 μA.
◆ Note: use cables with the same length (less than 200 m) and use terminal resistors of less than 20 ohm.
