AH500 Hardware and Operation Manual
4-104
Mutually exclusive output: For example, Y0.10 controls the clockwise rotation of the motor, and Y0.11
controls the counterclockwise rotation of the motor. The interlock circuit which is formed, and the
program in the PLC ensure that there are protective measures if an abnormal condition occurs.

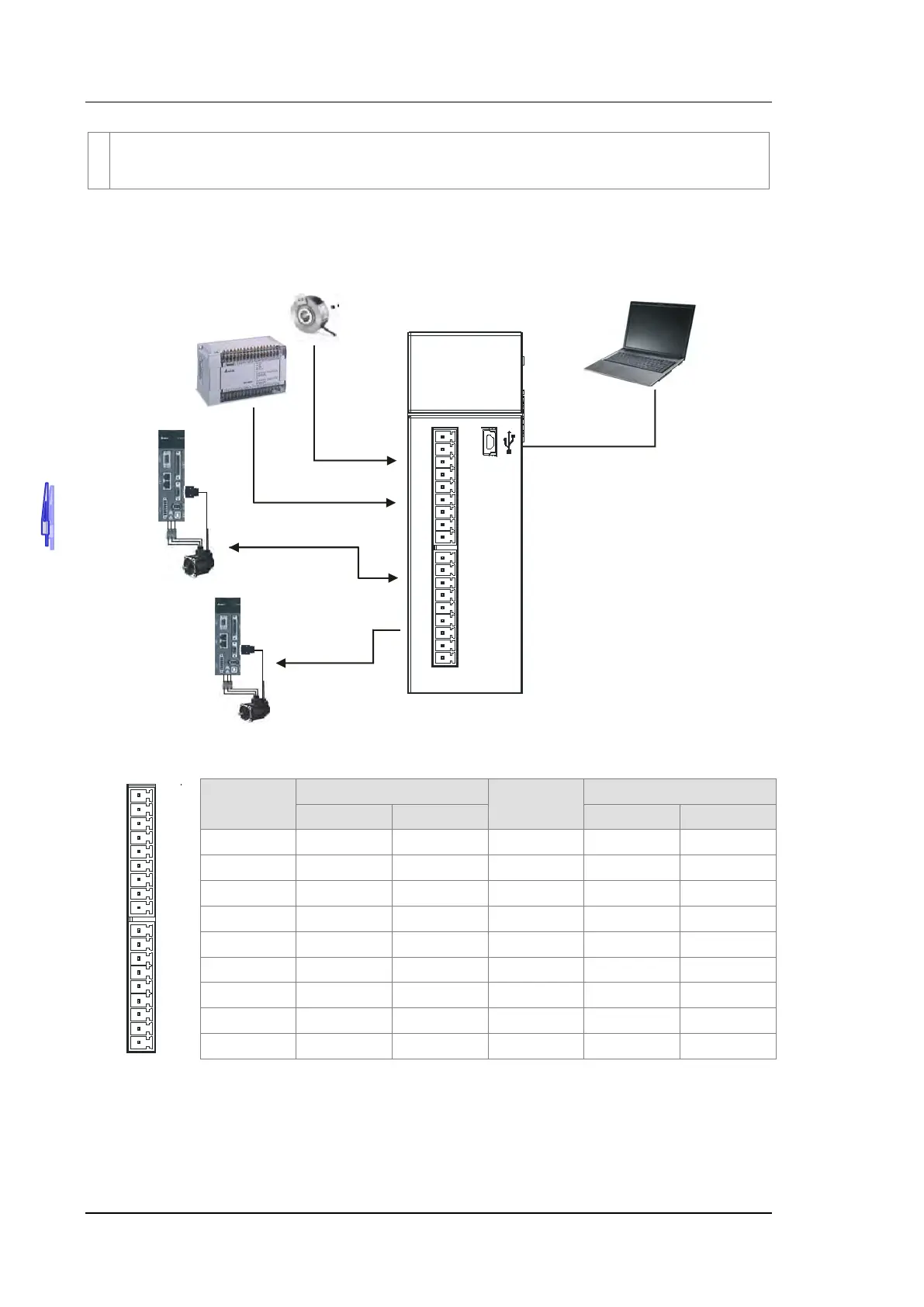

4.13.4 Wiring AH05PM-5A, AH10PM-5A, and AH15PM-5A
External devices for AH05PM-5A
Terminals on AH05PM-5A
Y0.3+
COM
Y0.3
-
Y0.8
Y0.9
X0.13
Y0.1
-
Y0.2+
Y0.2
-
Y0.0+
Y0.0
-
Y0.1+
X0.8
X0.9
X0.12
S/S
X0.0
X0.1
Terminal
Function
Terminal
Function
Pulse Count Pulse Count
S/S S/S S/S Y0.1+ B0+ -
X0.0 PG0 Rst0 Y0.1- B0- -
X0.1 PG1 - Y0.2+ A1+ -
X0.8 MPGA CntA0 Y0.2- A1- -
X0.9 MPGB CntB0 Y0.3+ B1+ -
X0.12 DOG0 - Y0.3- B1- -
X0.13 DOG1 - Y0.8 CLR0 -
Y0.0+ A0+ - Y0.9 CLR1 -
Y0.0- A0- - COM - -
Line driver
HTR1/CLR
USB
05PM
Y0.3+
COM
Y0.3
-
Y0.8
Y0.9
X0.13
Y0.1
-
Y0.2+
Y0.2
-
Y0.0+
Y0.0
-
Y0.1+
X0.8
X0.9
X0.12
S/S
X0.0
X0.1
RUN
ERROR
