5.4.3 Start Addresses for Temperature Measurement Modules

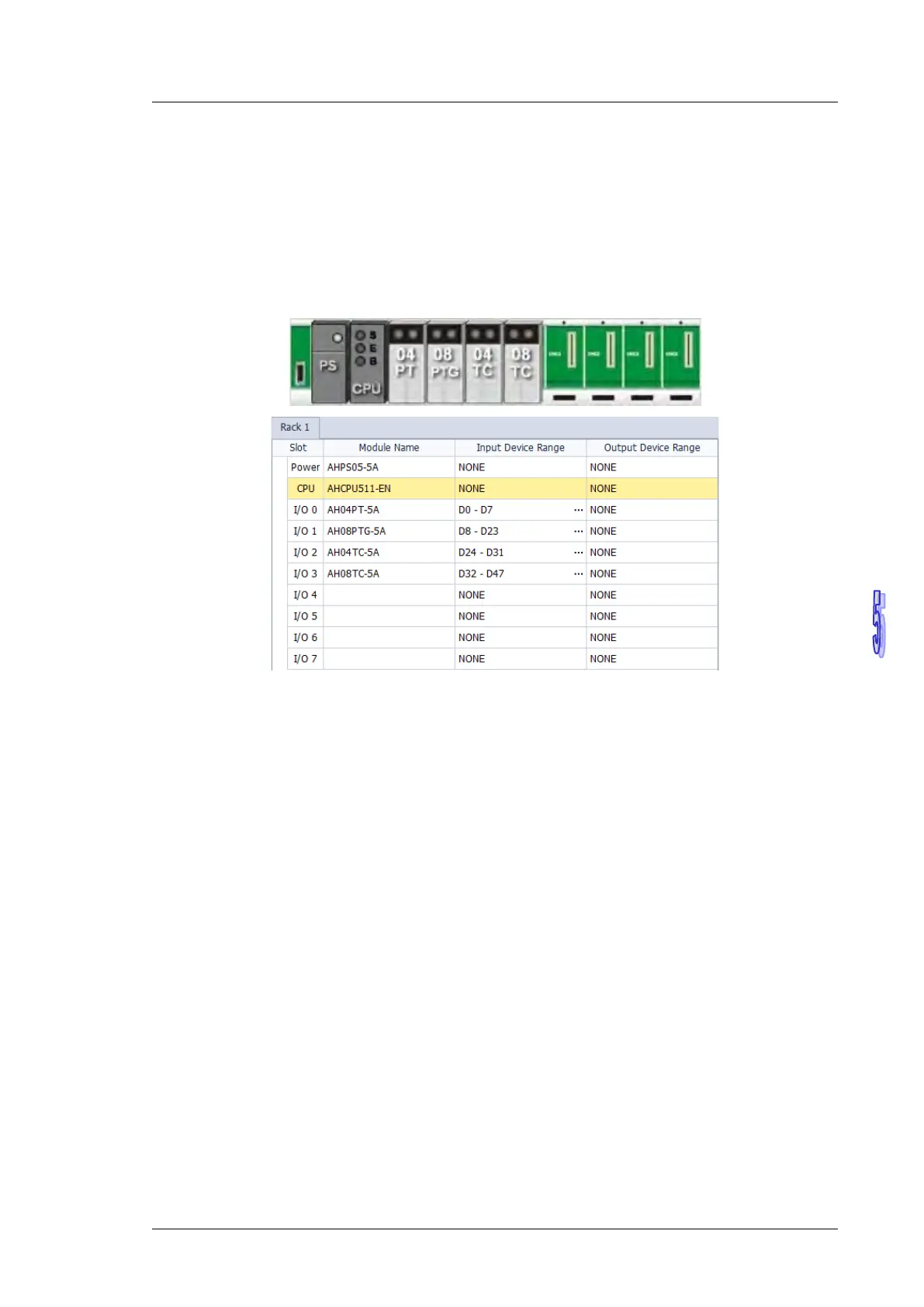

Input data registers are automatically assigned to a temperature measurement module through HWCONFIG in
ISPSoft according to the number of registers which is defined for the temperature measurement module. A
channel occupies two words.
 AH04PT-5A: There are 4 input channels. The input device range occupies 8 data registers.
 AH08PTG-5A: There are 8 input channels. The input device range occupies 16 data registers.
 AH04TC-5A: There are 4 input channels. The input device range occupies 8 data registers.
 AH08TC-5A: There are 8 input channels. The input device range occupies 16 data registers
