Method 2

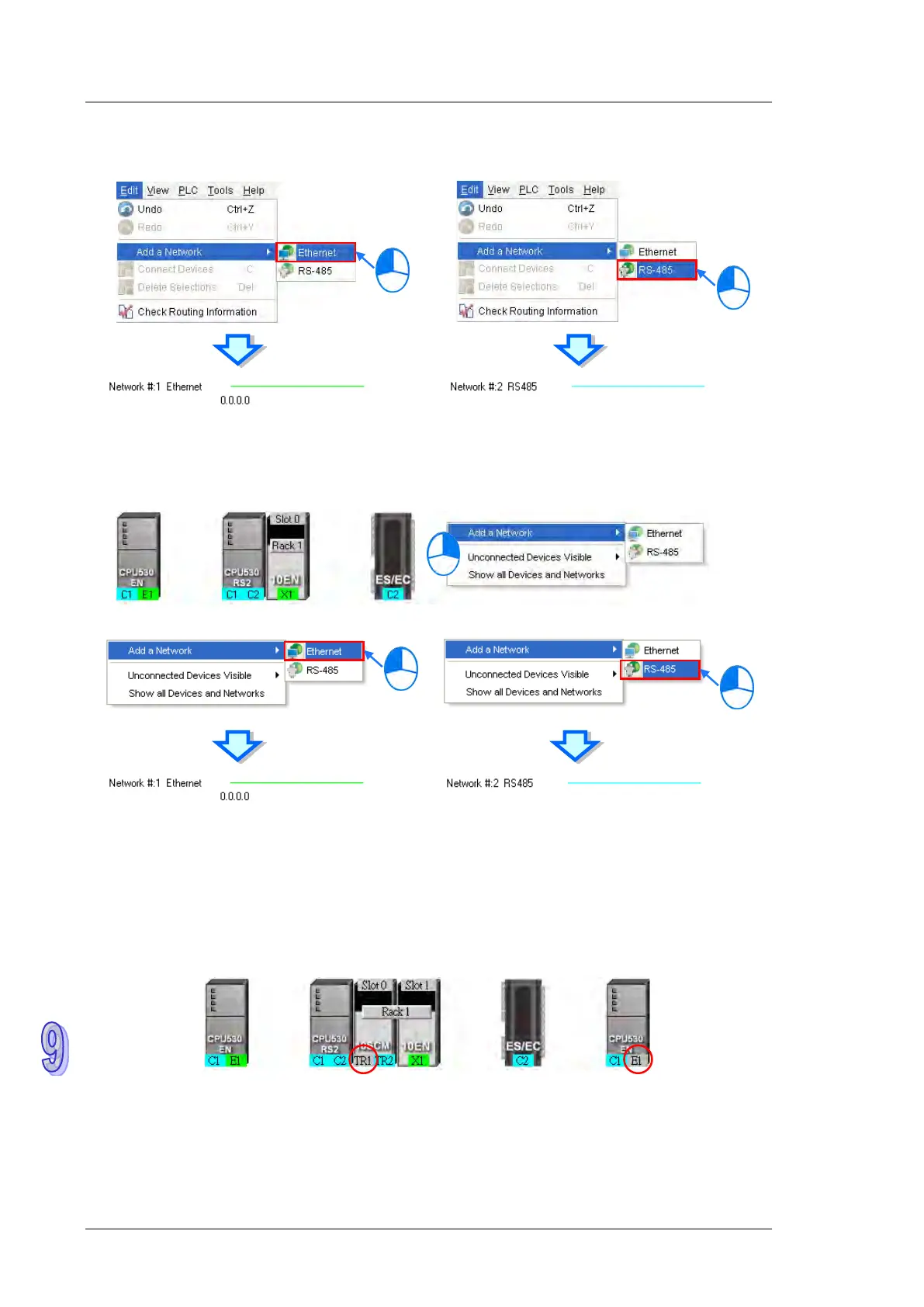

Click the Edit menu, point to Add a Network, and click Ethernet or RS-485.
Method 3
Right-click the blank in the working area, point to Add a Network on the context menu, and click
Ethernet or RS-485.
The ports of a device are displayed at the bottom of the device. If a port is blue, it is an RS-485 port. If a port is
green, it is an Ethernet port. The port number assigned to a port of a device is consistent with the definition of
the port. For example, E1 represents the first Ethernet port, C1 represents COM1, and C2 represents COM2.
The ports of an AH10SCM series module are marked with TR1 and TR2, and the ports of an AH10EN series
module are marked with X1 and X2. Besides, if the IP address assigned to an Ethernet port is a dynamic IP
address, or a port of an AH10SCM series module is not a Modbus port, the Ethernet port or the port of the
AH10SCN series module will be gray, and can not connect to any network.
