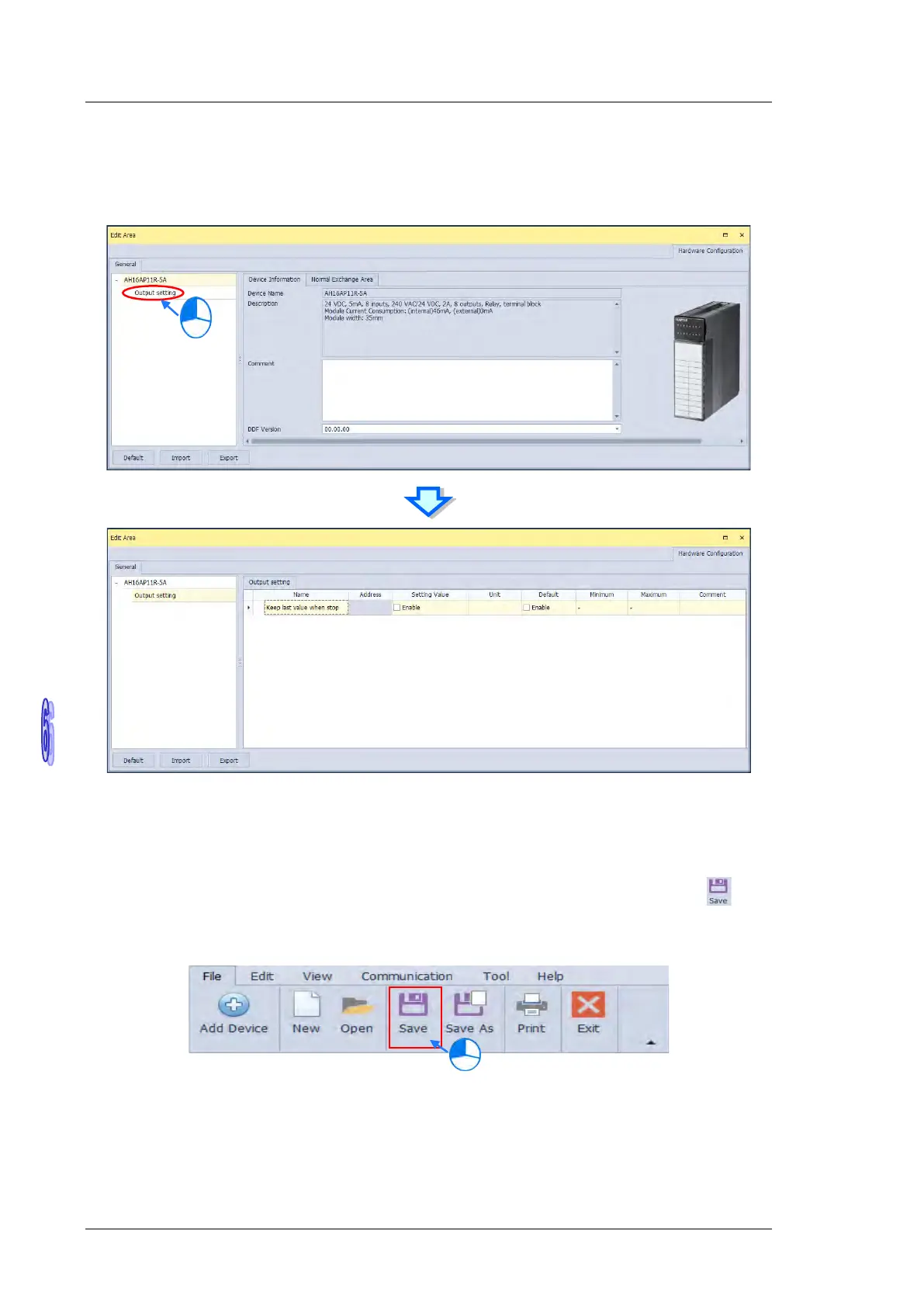

After the Parameter Setting window is opened, the users can view the information related to the module. The
users can select the parameter type at the left side of the window, and then set the parameter in the table at
the right side of the window.
In this example, the default values are retained. Therefore, the step of setting the parameter in AH16AP11R-
5A is skipped.
The hardware configuration is not complete until the parameters in the CPU module and AH16AP11R-5A are
set. However, the configuration and the setting must be downloaded to the CPU module so that they can take
effect. The configuration and the setting are saved here, and will be downloaded with the program in the
project later.
If the users want to save the configuration and the setting, they can click Save on the File menu, or on
the toolbar. After the configuration and the setting are saved, the users can close the HWCONFIG window.
*. Please refer to chapter 8 for more information about HWCONFIG.
