2. Tighten the two screws in the holes indicated by b.
b
a

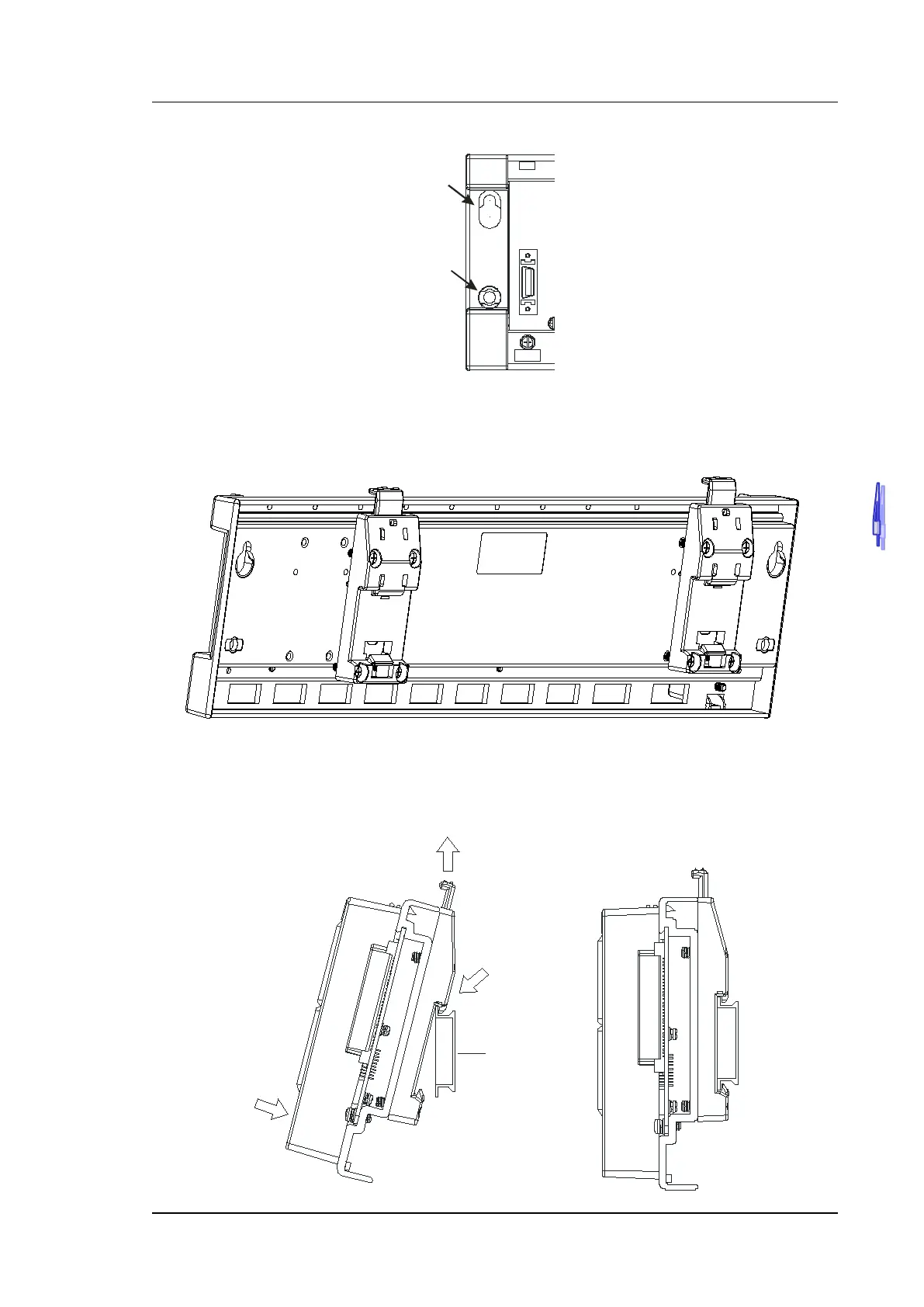

 Installing a DIN rail
1. The installation is applicable to a 35 millimeter DIN rail.
2. Install the mounting clips on a backplane.
3. Install the backplane on a DIN rail.
Step 1: Pull the clasp in the direction indicated by the arrow.
Step 2: Hang the backplane on a DIN rail.
Step 3: Press the clasp.
DIN rail
1
2
3
