Chapter 4 Installing Hardware and Wiring
4-31

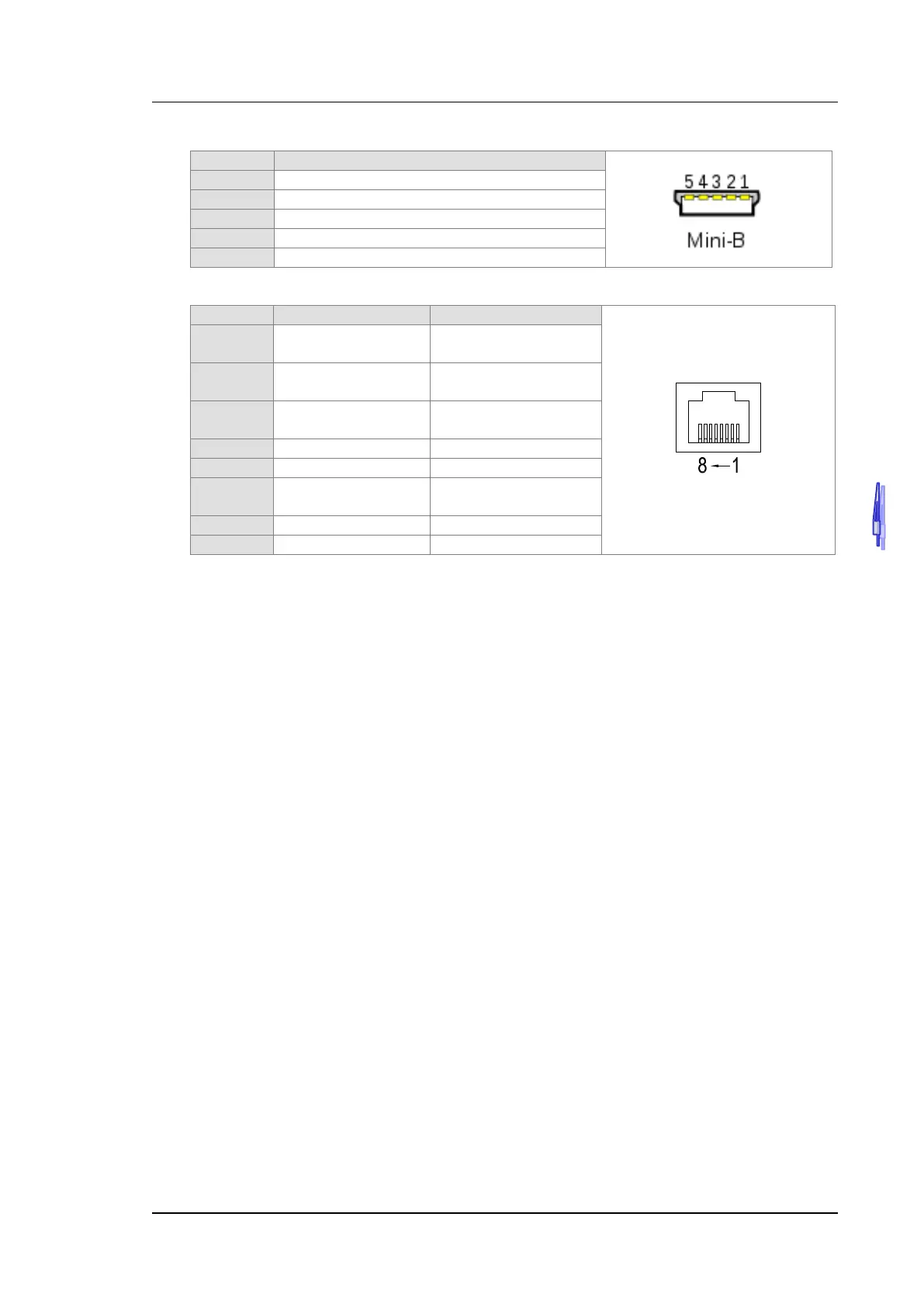

 USB port
Pin
Function
1
VBUS (4.4–5.25 V)
2
D−
3
D+
4
Ground
5
Ground
 Ethernet port
Pin
Signal
Description
1 TX+
Transmitting data
(positive pole)
2 TX-
Transmitting data
(negative pole)
3 RX+
Receiving data
(positive pole)
4
--
N/C
5
--
N/C
6 RX-
Receiving data
(negative pole)
7
--
N/C
8
--
N/C
