AH500 Hardware and Operation Manual
4-100

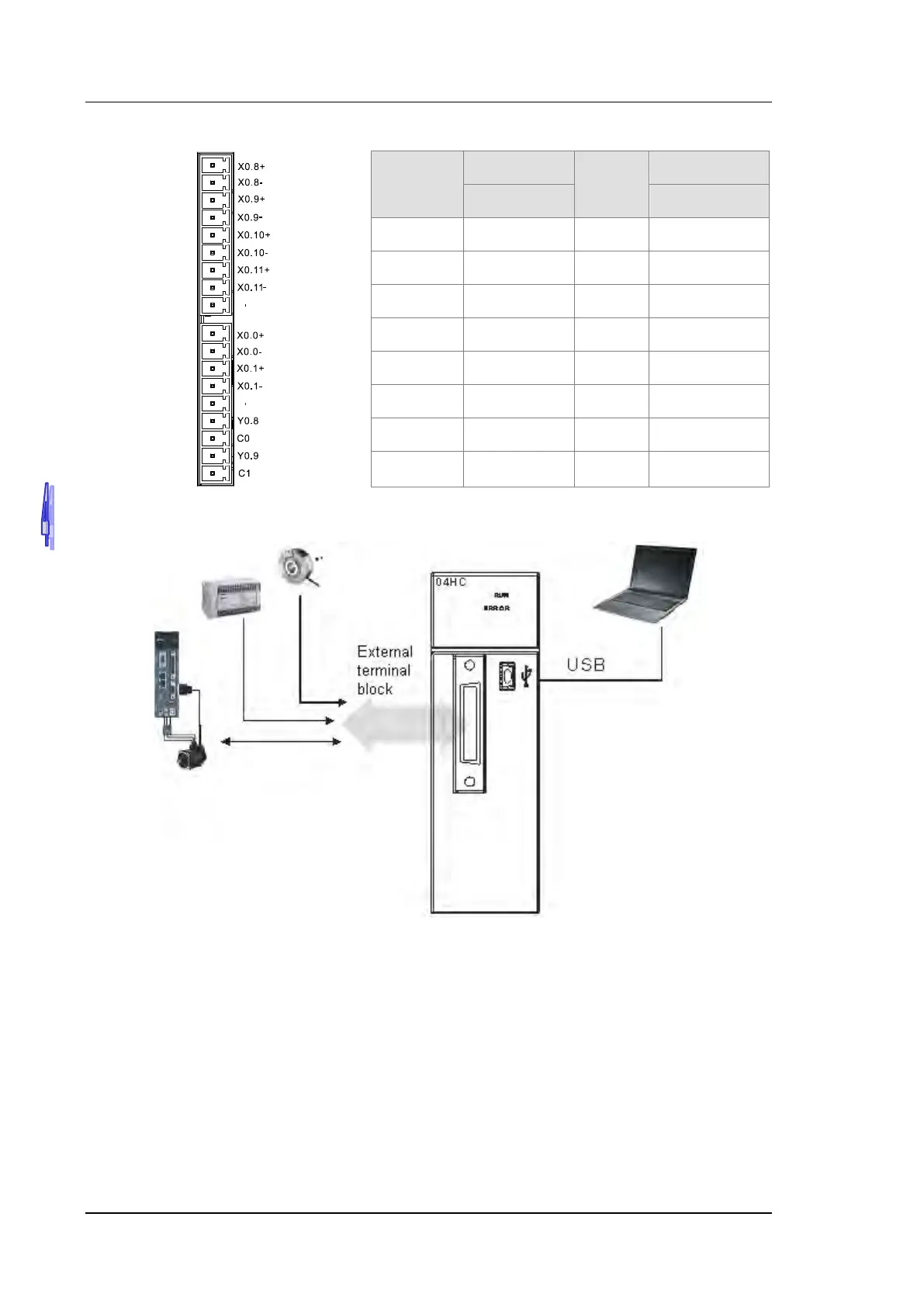

 Terminals on AH02HC-5A
Terminal
Function
Terminal
Function
Count Count
X0.8+ CntA0+ X0.0+ Rst0+
X0.8- CntA0- X0.0- Rst0-
X0.9+ CntB0+ X0.1+ Rst1+
X0.9- CntB0- X0.1- Rst1-
X0.10+ CntA1+ Y0.8 Out0
X0.10- CntA1- C0 COM0
X0.11+ CntB1+ Y0.9 Out1
X0.11- CntB1- C1 COM1
 External devices for AH04HC-5A
