AH500 Hardware and Operation Manual
9-18

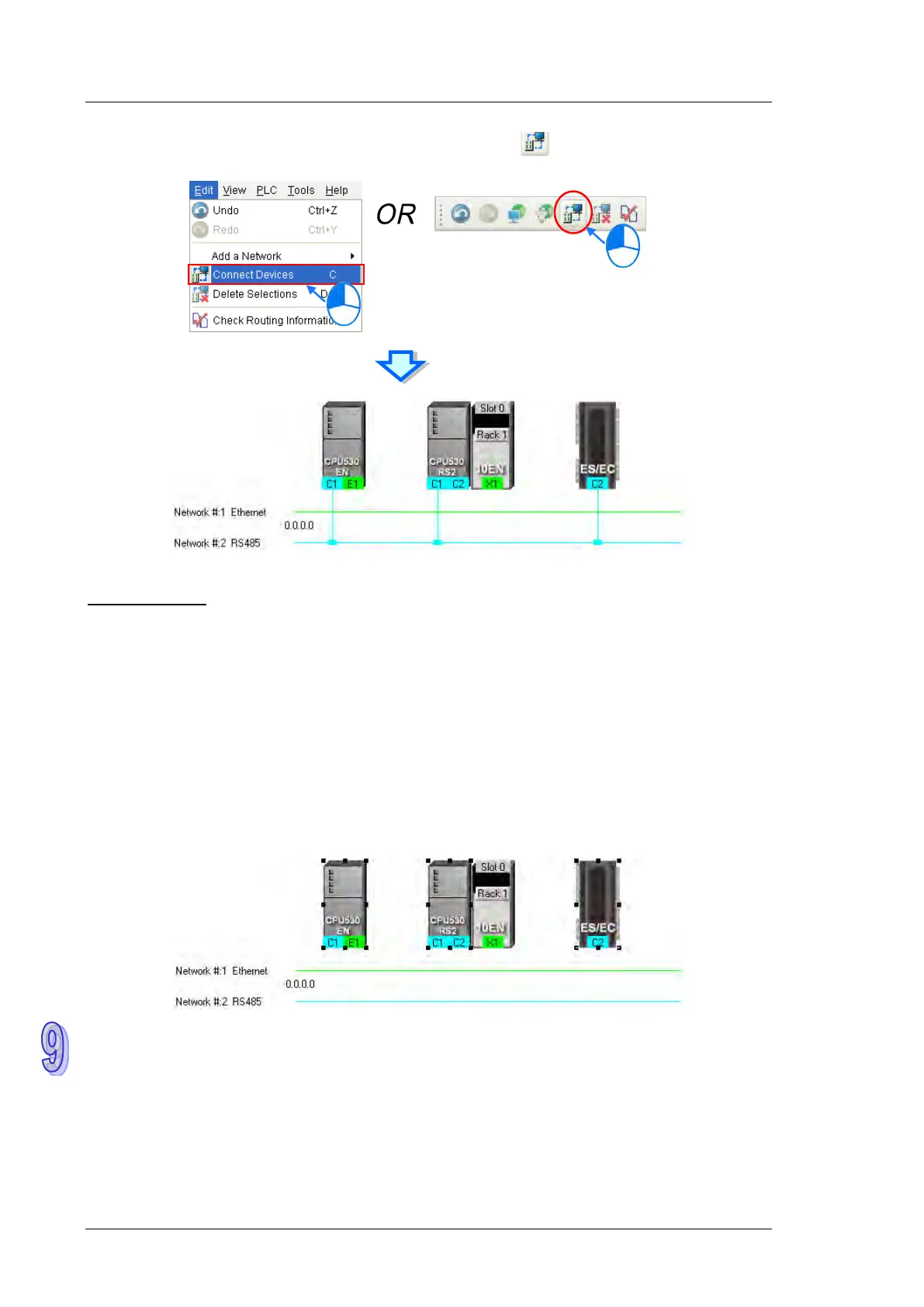

(2) After the users click Connect Devices on the Edit menu, or on the toolbar, the system will
connect the devices clicked to the network clicked.
Additional remark
(a) If the objects selected do not conform to the two principles listed above, the system will not connect the
devices selected to the network selected, and a warning message will appear.
(b) If a device selected has more than one port which is not connected to any network and matches the
network selected, the system will connect the port whose port number is smaller to the network selected.
(c) Users can select multiple devices by dragging a selection net around them. If the users press Ctrl+A on
the keyboard, all the devices and networks in the working area are selected.
(d) If users select a node which consists of a PLC and a module, and the PLC and the module conform to the
principles listed above, the system will connect a port of the PLC and a port of the module to the network
selected.
Automatically connecting a single device or several devices to a new network
(1) The users hold down Shift on the keyboard while they click devices. PLCs and modules are
independent devices. A device that the users click must have at least one port which is not connected
to any network, and matches the new network added.
