Chapter 9 Network Configuration
9-39
Multiple nodes

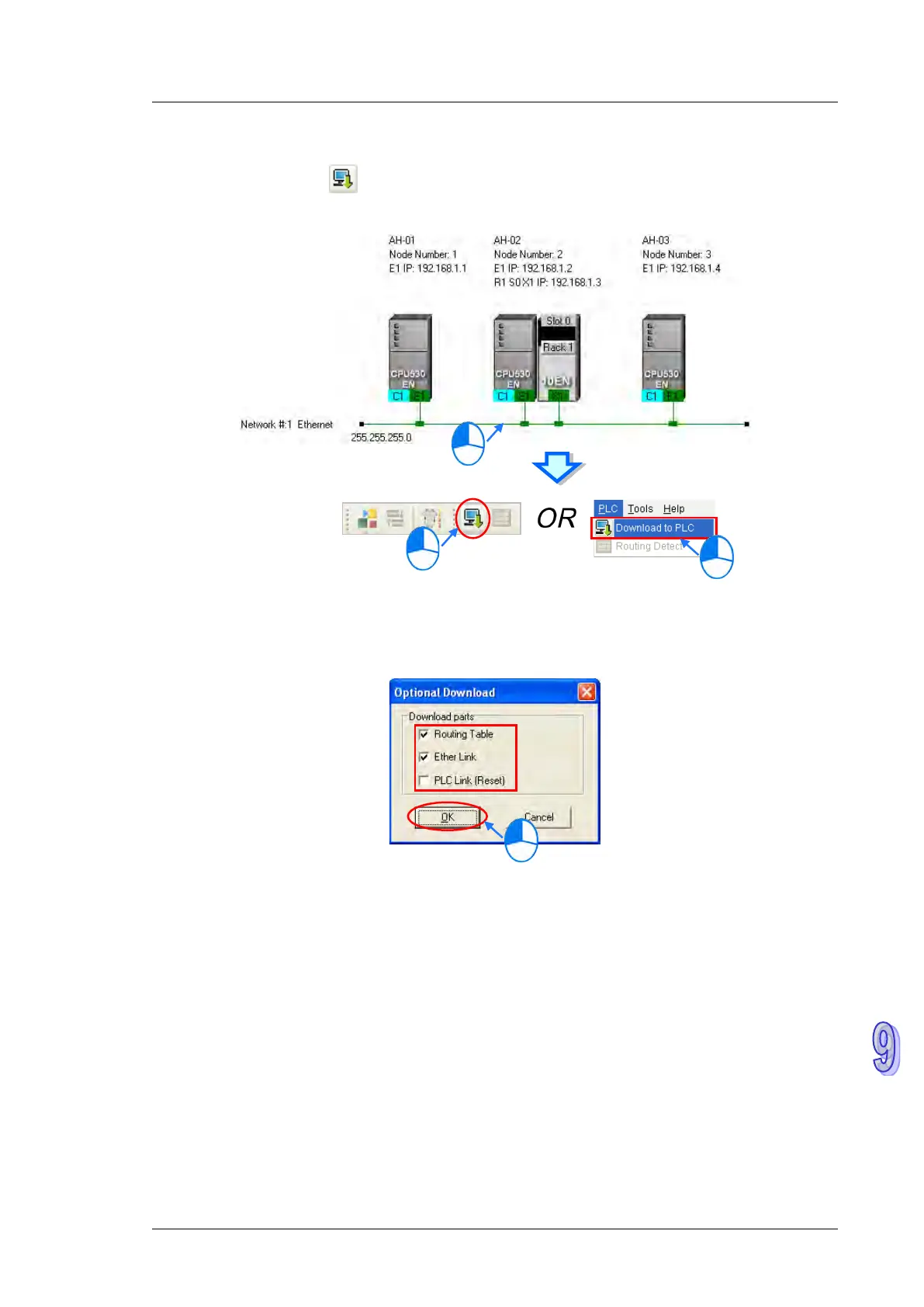

The users have to select an Ethernet network in the working area. After the users click Download to PLC
on the PLC menu, or on the toolbar, the Optional Download window will appear. If the actual
connection is consistent with the setting in NWCONFIG, parameters can be downloaded to the nodes
connected to the Ethernet network.
After the users follow the steps described above, the Optional Download window will appear. If a checkbox in
the Optional Download window is gray, the checkbox can not be selected. After the users select checkboxes
in the Optional Download window, they can click OK.
