Chapter 11 Convenient Functions
11-43

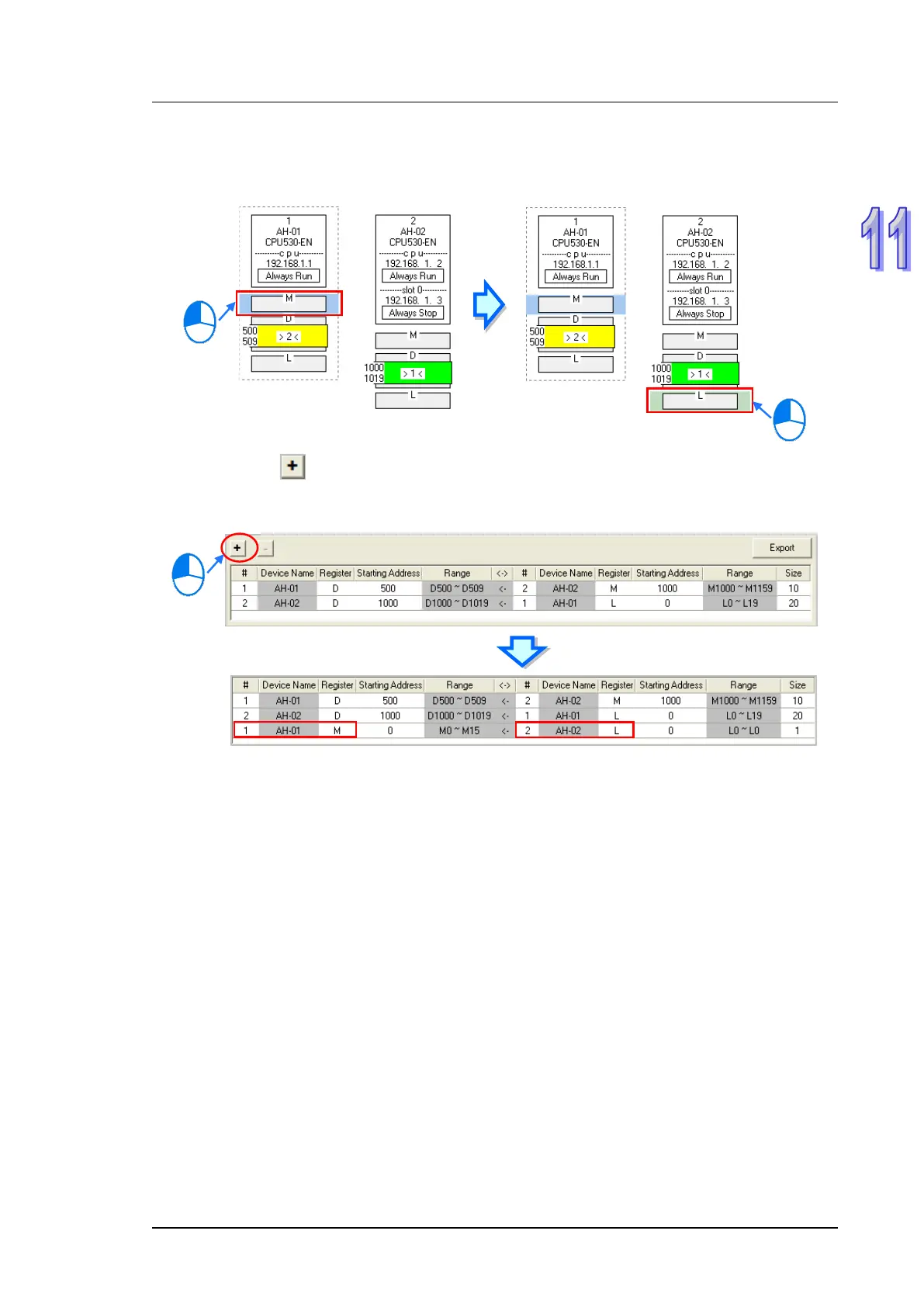

Once a node is selected, the node will be designated as a data demanding node. After the users click a device
block in the node selected, a blue cursor will appear. After the users click a device block in another node (a data
supply node), a green cursor will appear. The users can only click a device block in a data supply node. They
can not select the node, otherwise the node will be designated as a data demanding node.
The users can click
to add a new piece of data to the data exchange table. The data includes the data
demanding node, the node number assigned to the data demanding node, the data supply node, the node
number assigned to the data supply node, and the device types selected. The users can refer to section 16.4.3,
and set the other cells.
