Chapter 11 Convenient Functions
11-49
Multiple nodes
The parameters related to an Ether Link in all the nodes are uploaded. Before the users upload the related
parameters, they have to make sure that all the PLCs and all the modules are connected to an Ethernet
network, and can connect to NWCONFIG through Ethernet. The connection type that the driver selected in
the Driver Name drop-down list box in the Select a Driver window uses must be Ethernet, otherwise the
related parameters can not be uploaded. Please refer to 20.1.3 from ISPSoft User Manual for more
information.

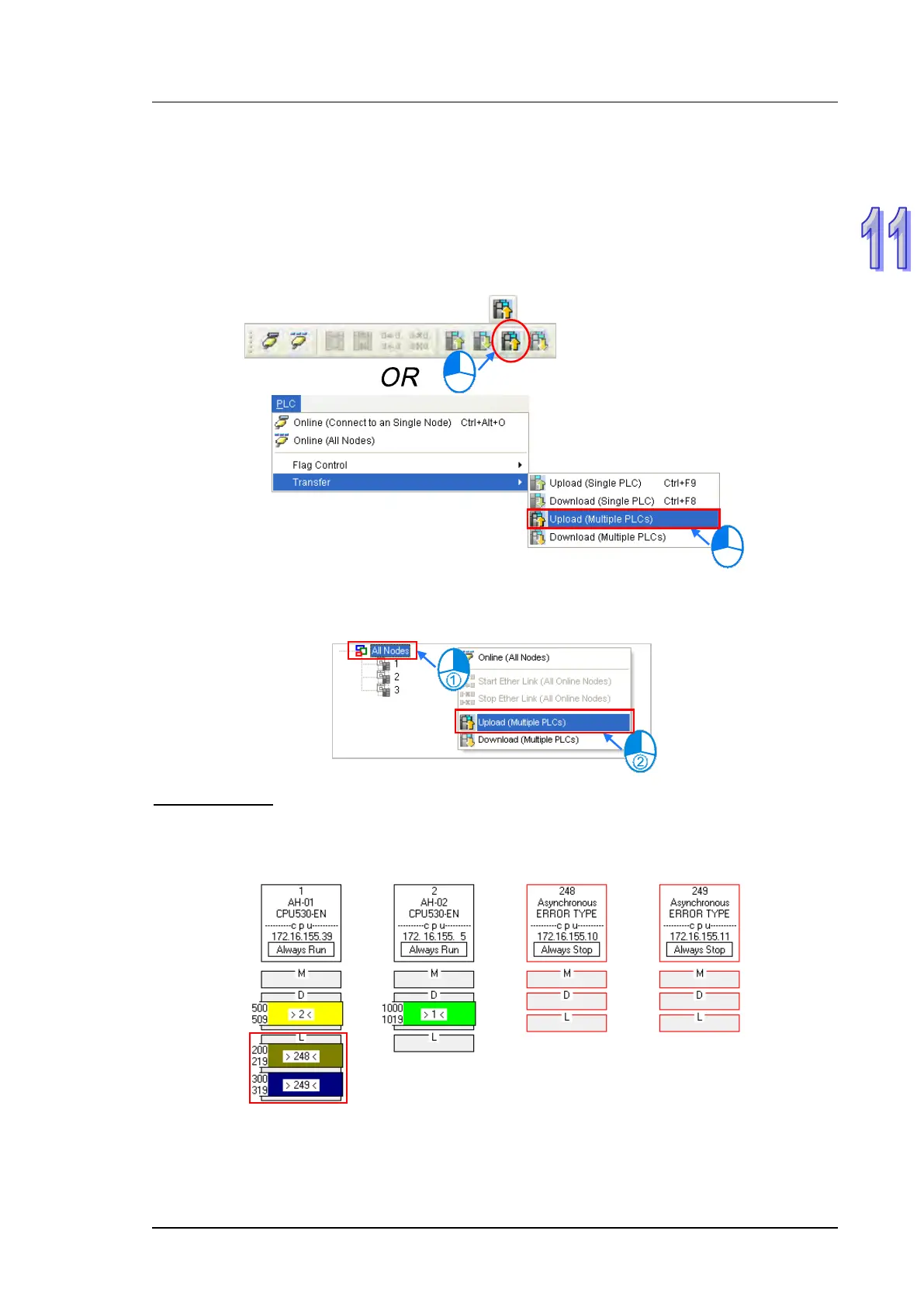

Method 1
Click the PLC menu, point to Transfer, and click Upload (Multiple PLCs). The users can also
download the related parameters by clicking
on the toolbar.
Method 2
Select All Nodes on the node list, right-click All Nodes, and click Upload (Multiple PLCs) on the
context menu.
Additional remark
After the parameters which include a node not configured in NWCONFIG are uploaded, the node which is not
configured in NWCONFIG will be called an asynchronous device, and will be in red. If the setting of an Ether
Link includes an asynchronous device, the system does not allow the Ether Link to be monitored, and it does
not allow the parameters related to the Ether Link to be downloaded.
