Dynon Avionics SkyView HDX - NEXRAD Legend; NEXRAD Data Coverage

MAP and VFR GPS Navigator Operation
SkyView HDX Pilot’s User Guide – Revision B 5-75

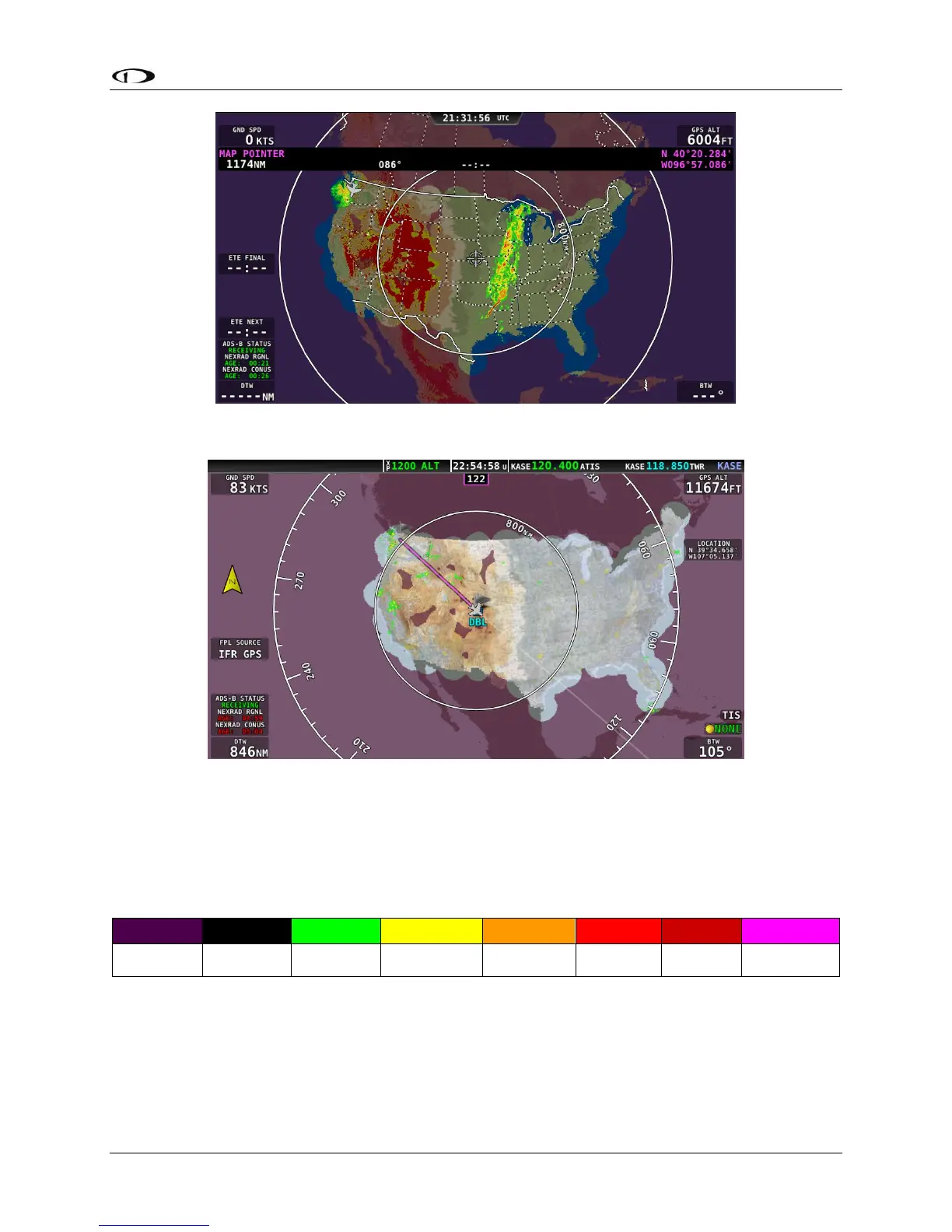

Figure 175 – Map Page: Terrain and WX View
Figure 176 – Map Page: VFR and WX View
NEXRAD Legend
NEXRAD imagery is color-coded to indicate density of precipitation:
Purple
Black
Green
Yellow
Orange
Red
Dark Red
Magenta
No Data
Trace
Light
Moderate
Heavy
Heavy
Extreme
Extreme
Table 9 – NEXRAD Precipitation Legend
NEXRAD Data Coverage
In some circumstances, geographic areas may not have NEXRAD imagery available. This may be
the case if:
