SkyView HDX Pilot’s User Guide – Revision B 4-1
4. PFD Operation
This section explains the layout of the PFD page, including the Synthetic Vision (SynVis)
functions, PFD symbology, and explains how to adjust the various bugs.
Synthetic Vision depictions of terrain, runways, obstacles, and other information
are meant as informational aids only. These depictions should not be used as the
primary means for obtaining situational awareness of these features in flight.
The terrain data displayed in SkyView HDX is obtained from third party sources.
Dynon Avionics cannot independently verify the accuracy of terrain data at all
geographical points.
SkyView HDX’s PFD requires data from an SV-ADAHRS-20X module.
SkyView HDX’s display of Synthetic Vision, ground speed, and HSI requires valid GPS
data.
PFD Page Layout

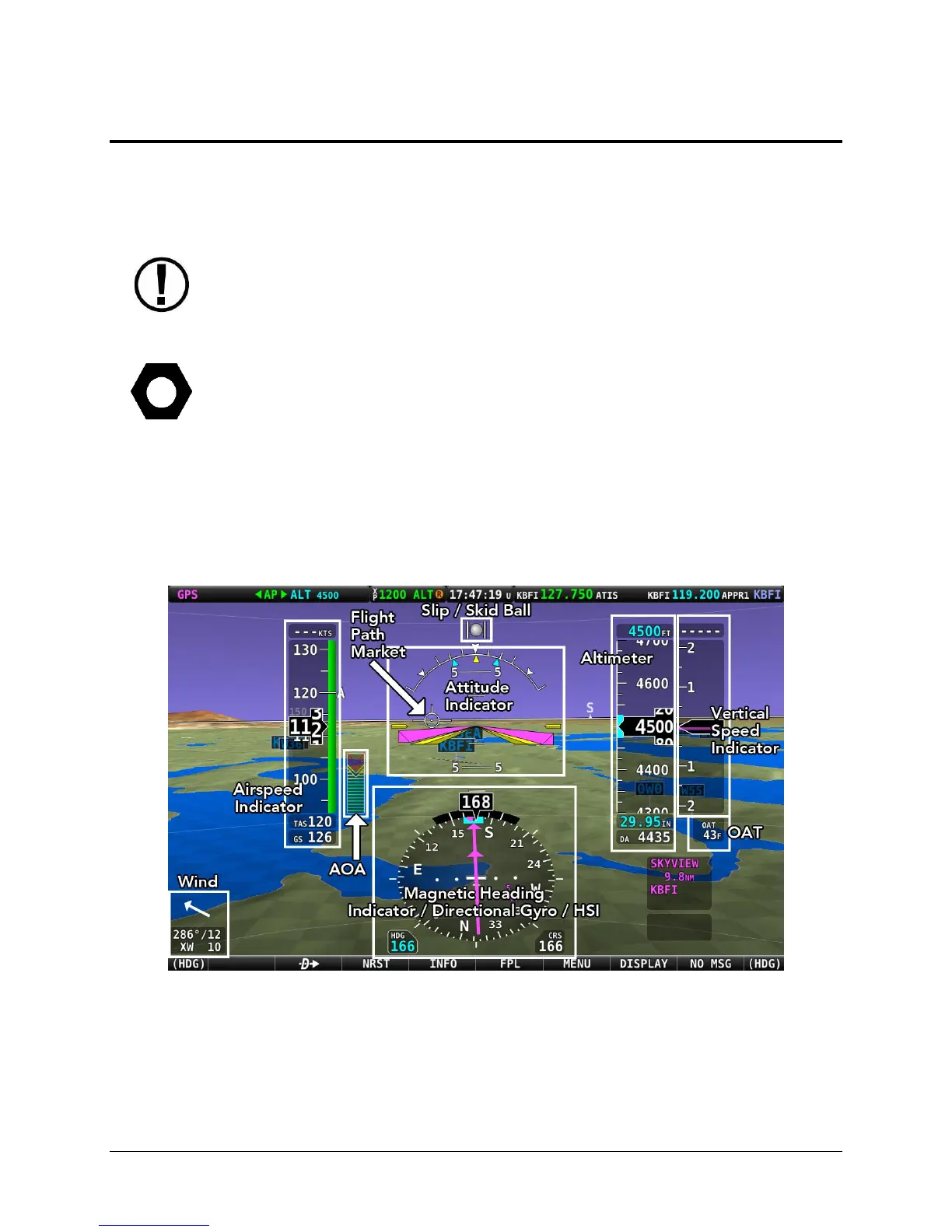

The PFD page, as shown in the figure below, displays important flight information and Synthetic
Vision.
Figure 27 – SkyView PFD
