PFD Operation
4-28 SkyView HDX Pilot’s User Guide – Revision B

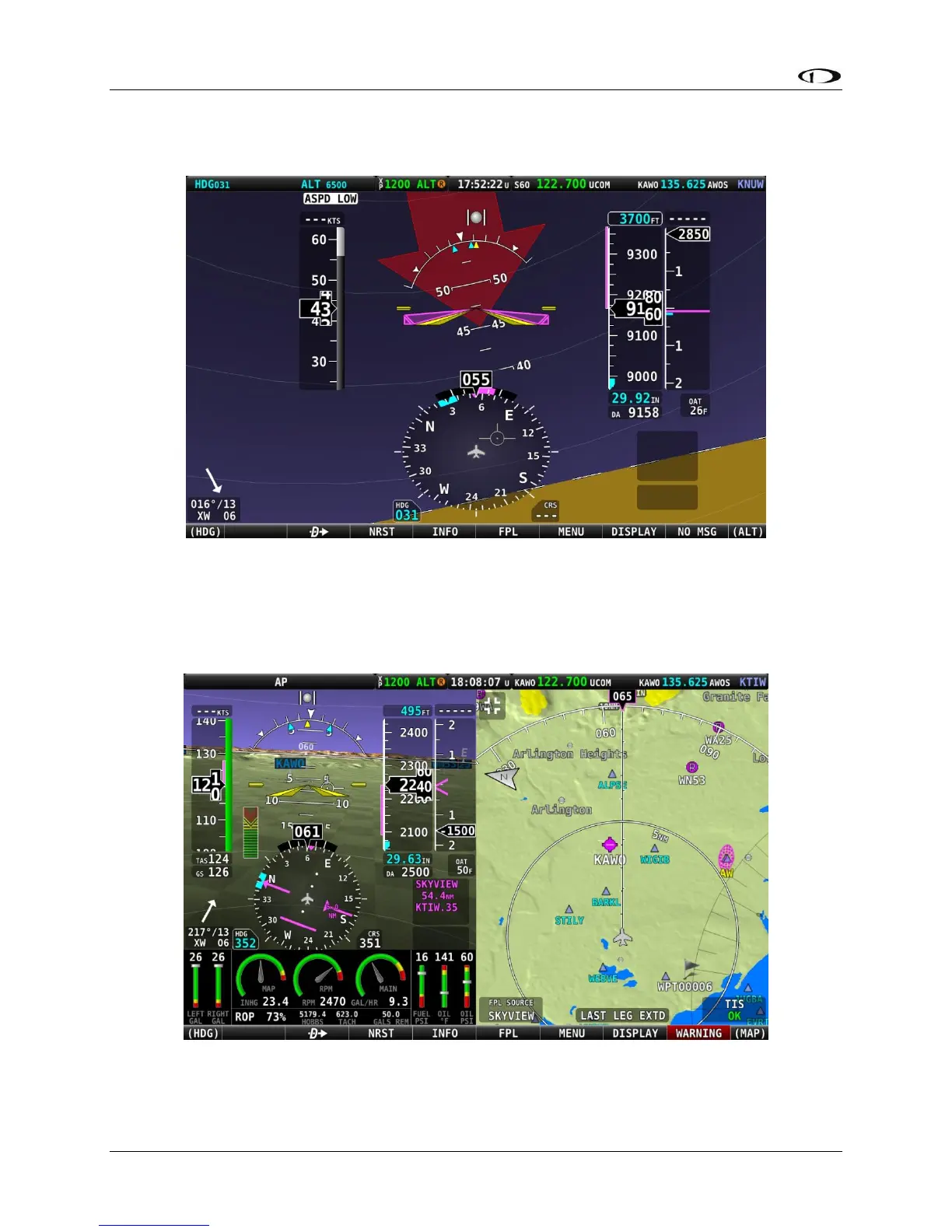

Figure 74 shows the pitch up warning arrows with the slivers of ground.
Figure 74 – Extreme Pitch Warning Indicator Arrows
Airport Flags on Synthetic Vision
Airport Flags is symbology on the PFD representing the location of airports in your field of
vision. They can be enabled and disabled through the PFD TOOLS menu item.
Figure 75 – Airport Flag on PFD
