MAP and VFR GPS Navigator Operation
SkyView HDX Pilot’s User Guide – Revision B 5-13

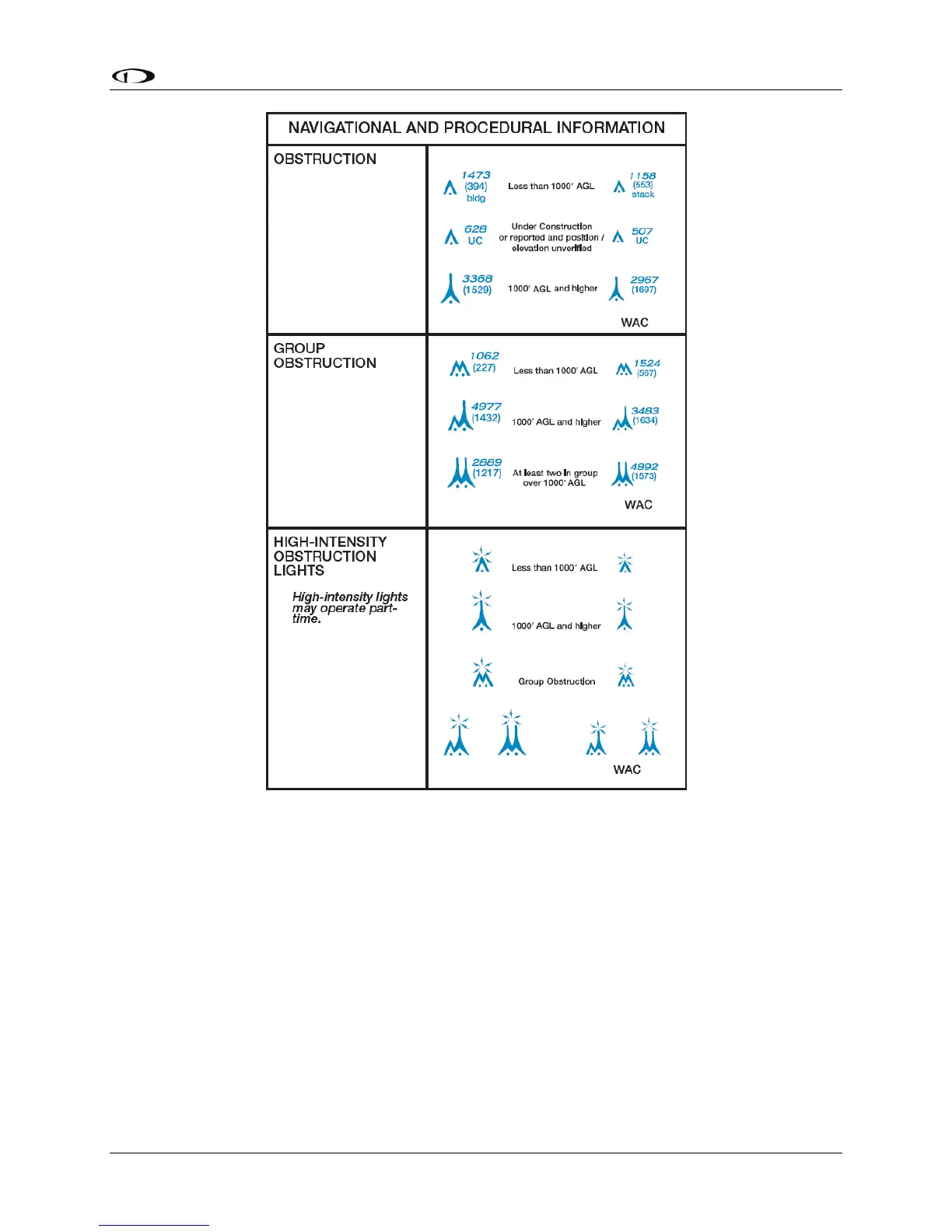

Figure 105 – FAA Sectional Chart Obstruction Key
Airspace
SkyView HDX’s Moving Map represents different classes of airspace with the colors specified in
Table 8.
The floors and ceilings of airspaces are shown within each airspace segment in the familiar
sectional-style notation.
