MAP and VFR GPS Navigator Operation
5-10 SkyView HDX Pilot’s User Guide – Revision B

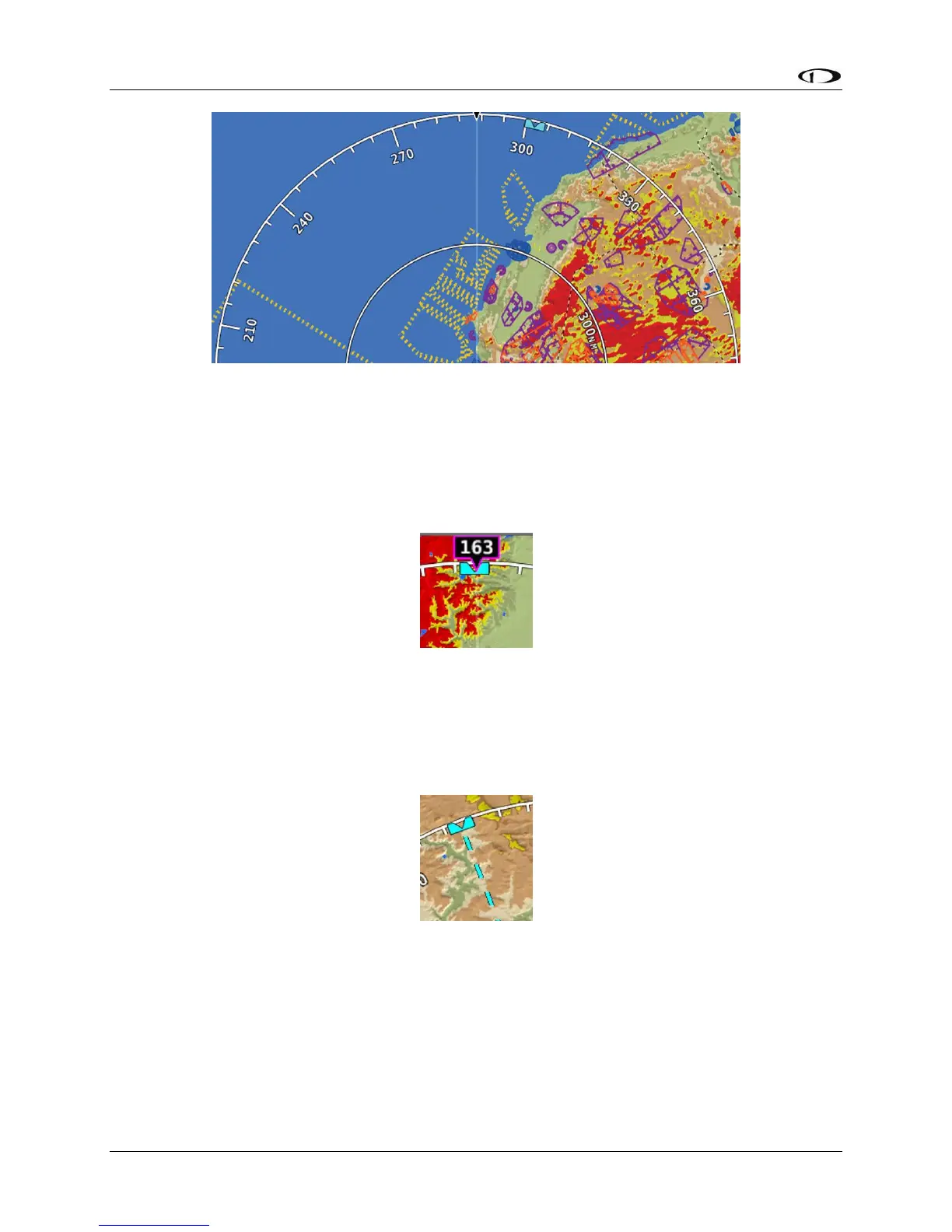

Figure 98 – Ground Track Arc
The current ground track as shown in Figure 99 is displayed in two ways: the digital readout and
the white ground track line. The border around the digital readout is normally magenta when
based on the GPS ground track. When the aircraft is not moving fast enough for SkyView to
reliably determine the ground track direction, magnetic heading is used instead. In this case,
the border around the digital readout will be white.
Figure 99 – Current Ground Track
The heading bug as shown in Figure 100 is represented with a cyan marker. When moving the
heading bug, a cyan colored lubber line that extends from the aircraft to the bug is displayed as
well. Reference the Heading/Track Bug Section for instructions on how to adjust the heading
bug.
Figure 100 – Heading Bug
