Setup Requirements
Connecting to a VT Series Terminal
2-4 Matrix E1 Series (1G694-13) Configuration Guide
4. Turn on the terminal and access the setup directory. Set the following parameters on your
terminal:
5. When these parameters are set, the Matrix E1 startup screen will display.

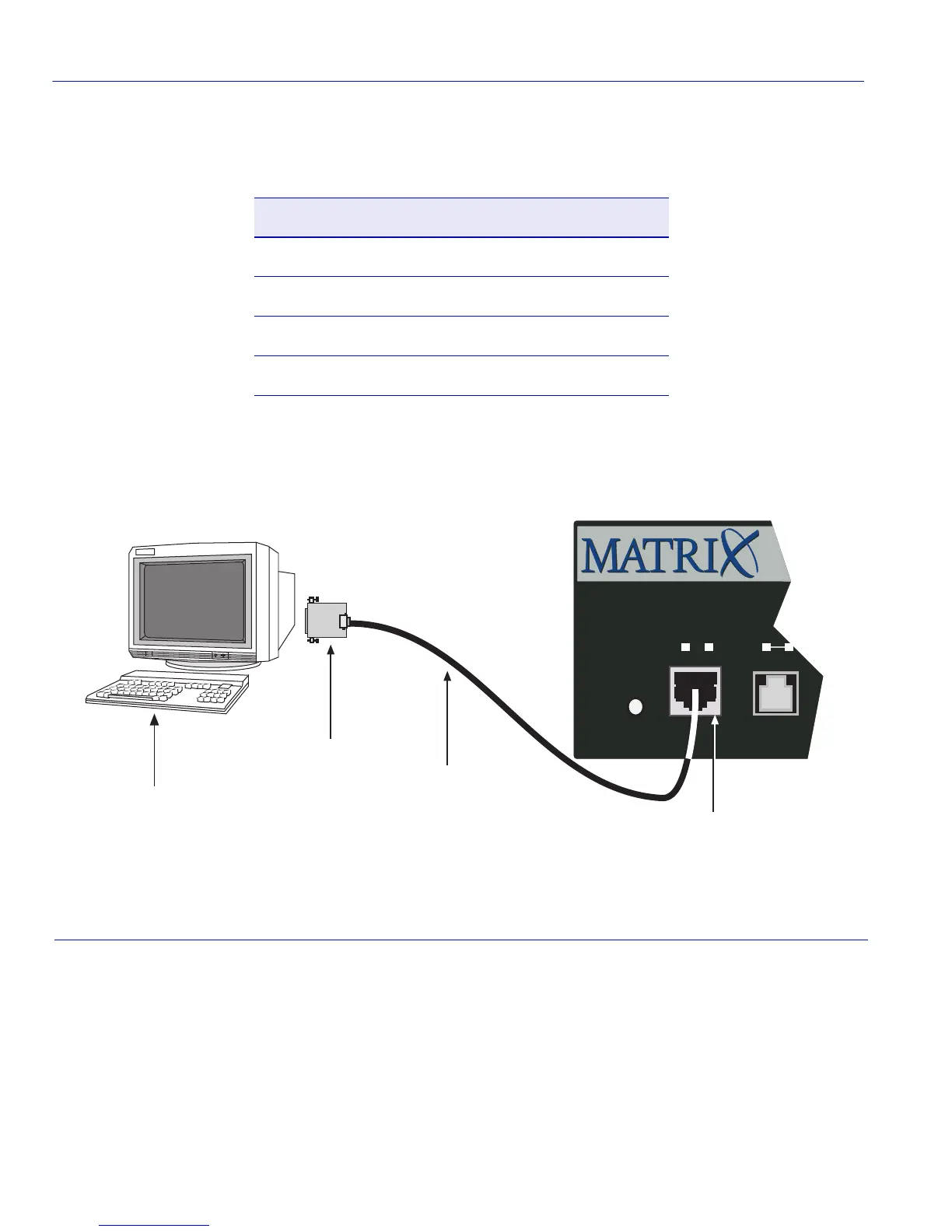

Figure 2-2 Connecting a VT Series Terminal
Parameter Setting
Mode 7 Bit Control
Transmit Transmit=9600
Bits Parity 8 Bits, No Parity
Stop Bit 1 Stop Bit
➀
VT Series Terminal
➂
UTP Cable with RJ45 Connectors
➁
RJ45-to-DB25 VT Adapter
➃
RJ45 Console Port
1
Reset
Console
CPUPWR
Ã
3712_18
1G694-13
Á
Â
À
To Next Page
