Port Configuration
Port String Syntax Used in the CLI
Matrix E1 Series (1G694-13) Configuration Guide 4-3

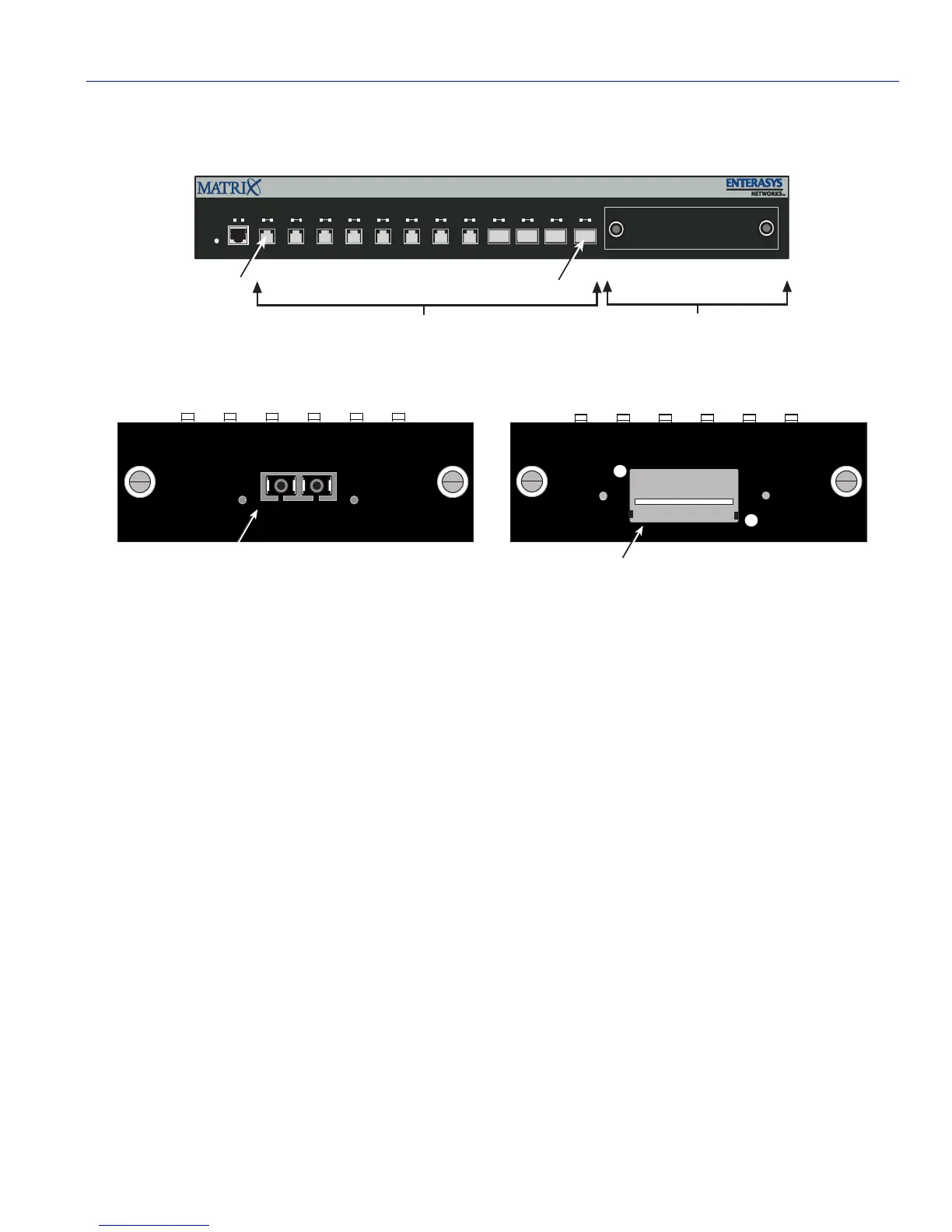

Figure 4-1 Expansion Module and Fixed Front Panel Port Numbering Scheme
Figure 4-2 Optional 10-Gigabit Ethernet Expansion Modules
4.1.2 Port String Syntax Used in the CLI
Commands requiring a port_string parameter use the following syntax to designate port type and
location:
port type.slot location.port number
Where port type can be:
ge, for Gigabit Ethernet, or
tg for 10-Gigabit Ethernet
Slot location can be:
0, for the fixed front panel port,
1, for the expansion module slot,
Port number can be:
Any port number in a port location.
The highest port number that can be entered is dependent on the number of ports in a slot location.
For example: The Matrix E1 1G694-13 has 12 front panel ports (location 0), and 1 port in the
expansion module (slot location 1).
1G694-13
1G694-13
12
2
3 4 5 6 7 8
9 10 11 12
Reset
Console
Console
CPUPWR
1
1
12
0
3754_03
ZPIM1-01
ZPIM1-06
TX
RX
3754_21
RX TX
1
1
