102 Upgrade and Maintenance Manual RX900 S2
Fan modules
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12049-001.fm
7.1 Replacing a defective fan module
7.1.1 Required tools
● Starting and completing the task:
– key for the rack doors (if applicable)
● Replacing the fan module: tool-less
7.1.2 Starting the task
Ê Perform the following procedures:
1. "Opening the rack door" on page 40
2. "Locate the faulty server" on page 37
3. "Sliding the server out of the rack" on page 42
7.1.3 Opening the fan cover

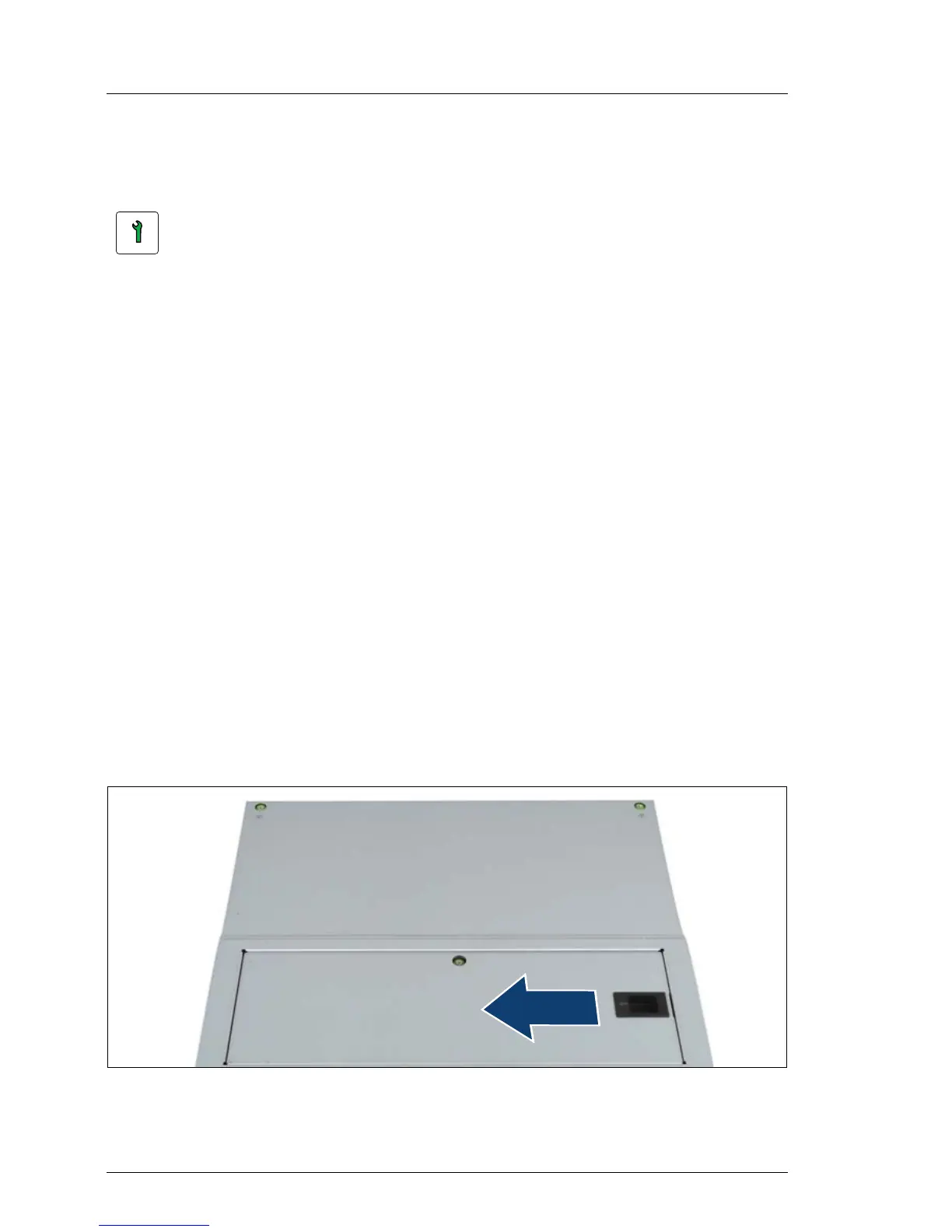

Figure 49: Opening the fan cover
Ê Press the handle in direction of the arrow and lift the fan cover.
Trained personnel
To Next Page
