Fujitsu PRIMERGY RX900 S2 - Removing the CPUMEMR Guide

RX900 S2 Upgrade and Maintenance Manual 283
Baseboard
14.6.6 Removing the CPUMEMR guide

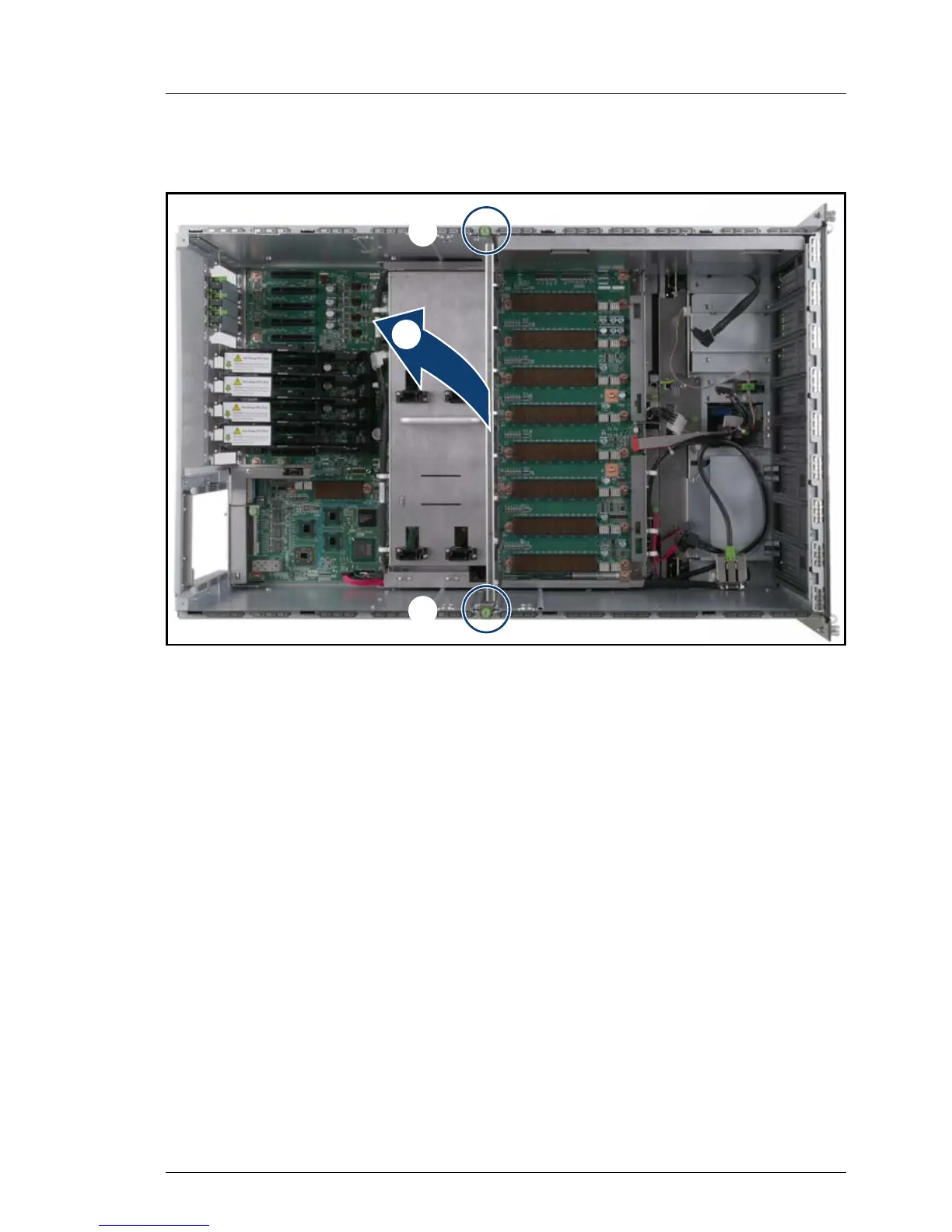

Figure 179: Removing the CPUMEMR guide
Ê Loosen the captive screws of the CPUMEMR guide (1).
Ê Lift the CPUMEMR guide out of the chassis (2).
/
/
