110 Upgrade and Maintenance Manual RX900 S2
Expansion cards and BBU
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12050-001.fm
8.1.4 Network adapter D2745

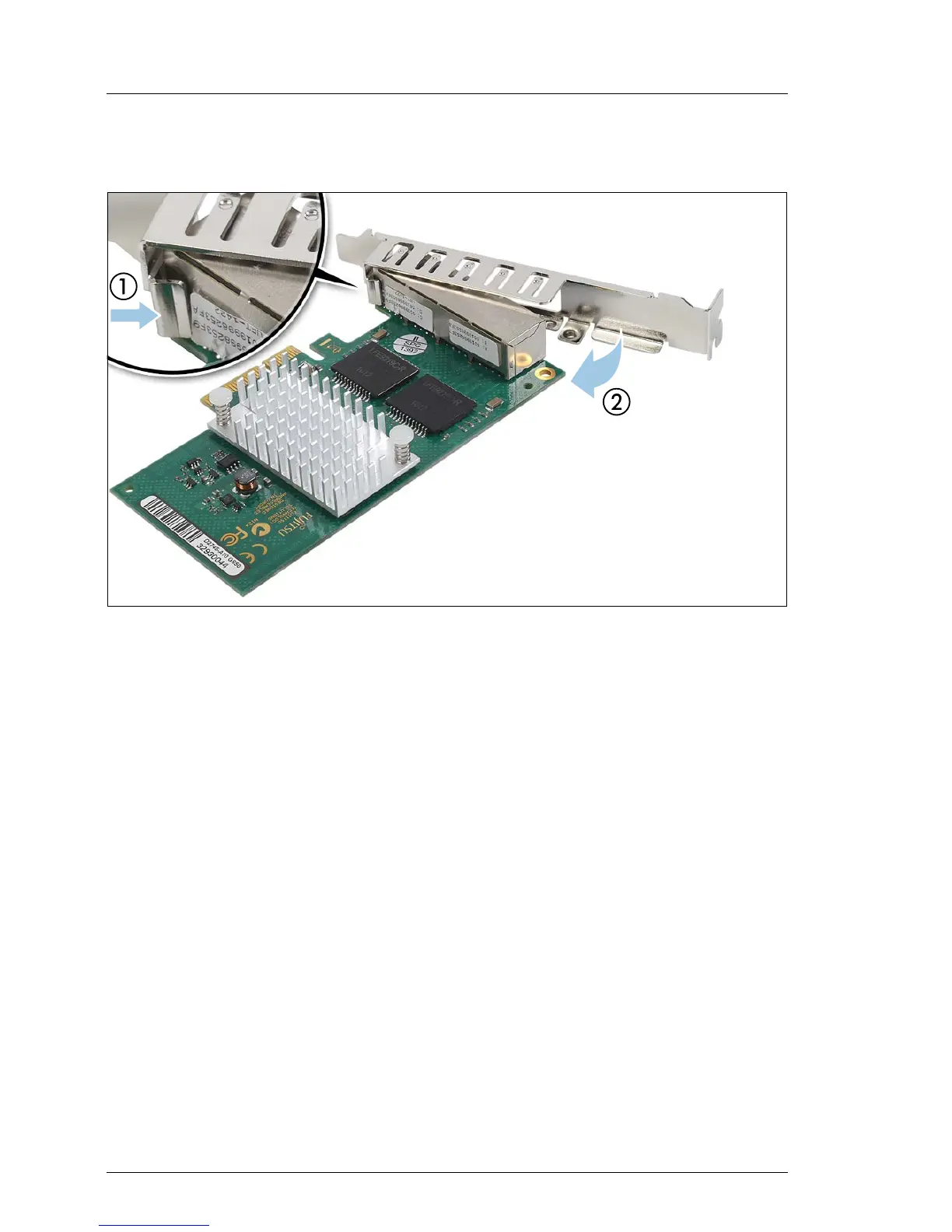

Ê Hinge the slot bracket to the plug shell as shown (1).
Ê Fold the slot bracket towards the controller until the threaded mounting tab
is aligned with the screw hole on the controller (2).
