RX900 S2 Upgrade and Maintenance Manual 77
Power supply
5.4.16 Sliding the local service display inward

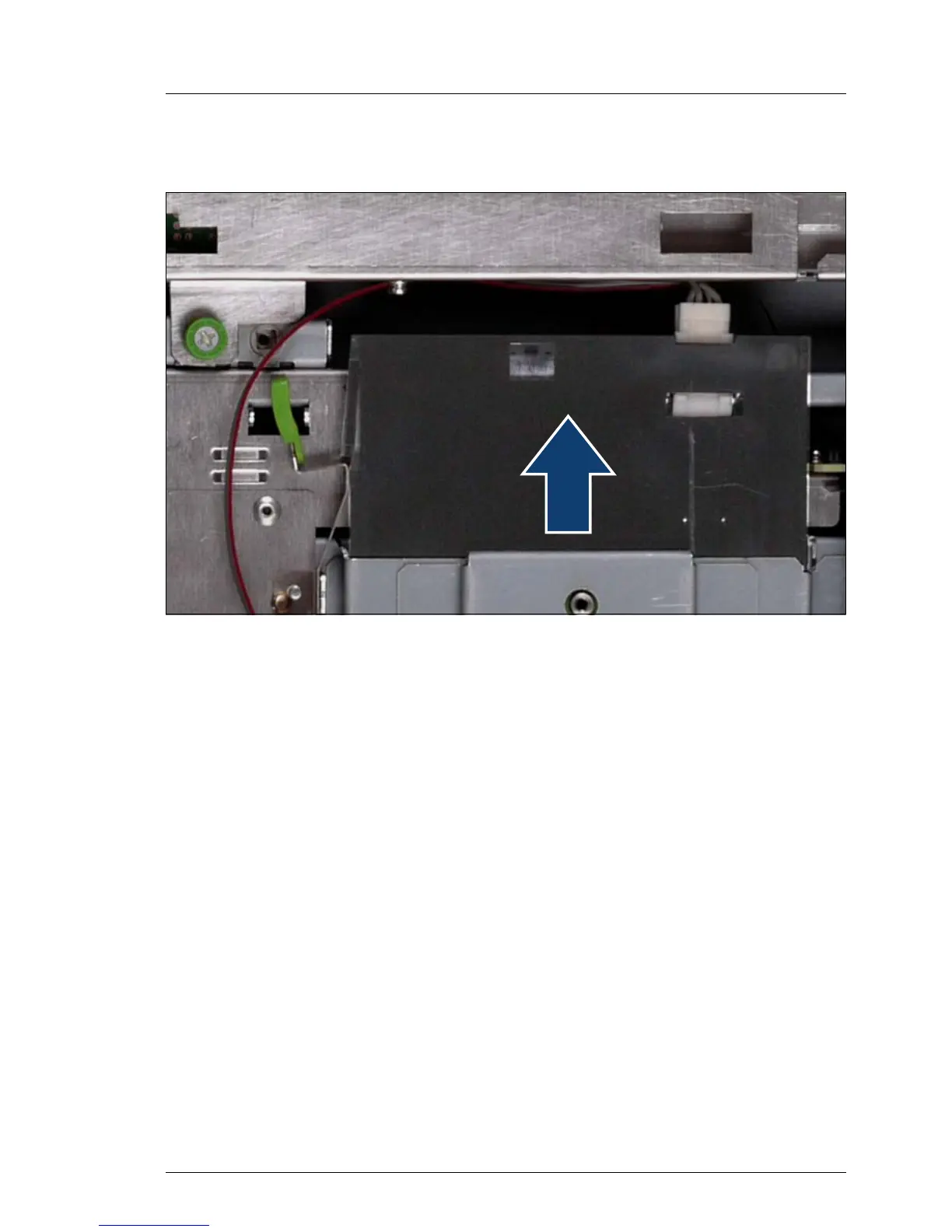

Figure 33: Sliding the local service display inward
Ê Slide the local service display inward until it clicks into place.
5.4.17 Completing the task
Ê Perform the following procedures to complete the task:
1. Install the BBU holder, see "Expansion cards and BBU" on page 105
2. Install the PCI Riser, see "Expansion cards and BBU" on page 105
3. Install all expansion cards and dummy modules in PCIe slots #8 to #17,
see "Expansion cards and BBU" on page 105
I Make sure that you reinstall each card in the slots it was located
before the replacement.
4. Install all CPUMEMRs, see "Removing the CPUMEMR" on page 190
I Make sure that you reinstall each CPUMEMR in the slot it was
located before the replacement.
5. Install all PSUs, see "Installing a power supply unit" on page 55
