Front panel and external connectors
12.1.3 Removing the control panel

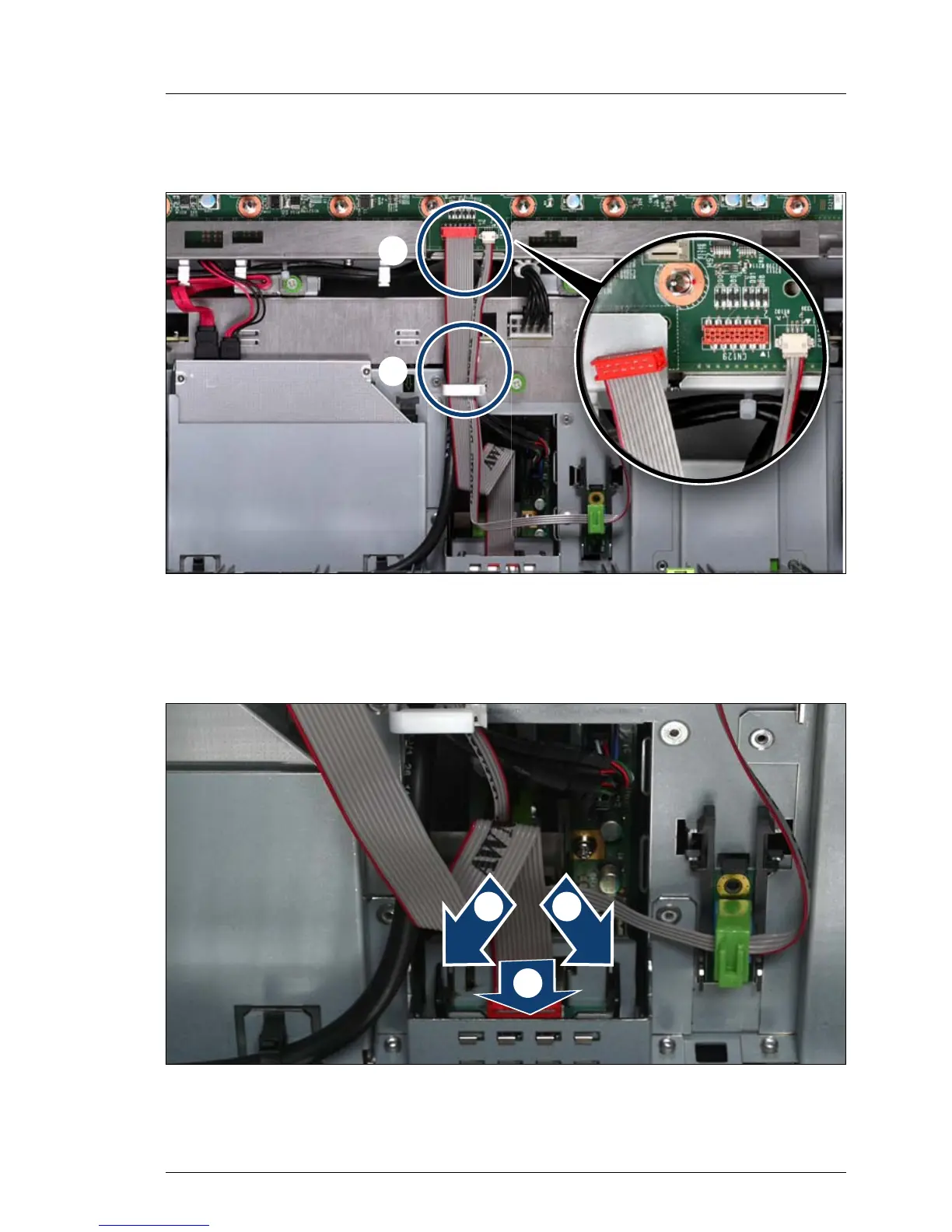

Figure 136: Disconnecting the control panel cable from the baseboard
Ê Disconnect the control panel cable from the baseboard (1).
Ê Open the cable clamp (2).
Figure 137: Removing the control panel
Ê Press the plastic tongues slightly outward as indicated by the arrows (1).
/
