12.1.6 Installing the control panel

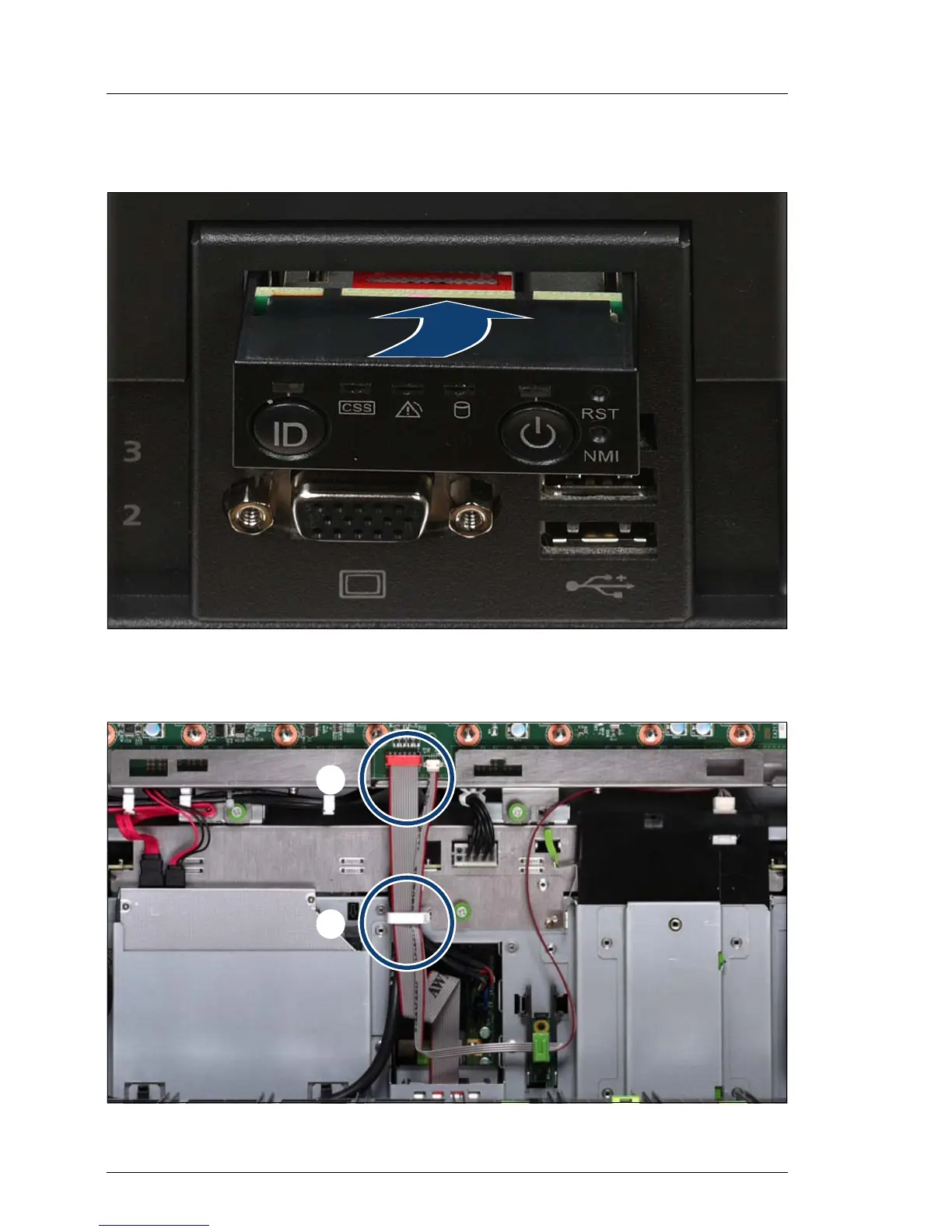

Figure 140: Installing the control panel
Ê Slide the control panel into the bay until it clicks into place.
Figure 141: Connecting the control panel cable
/
