5.3.3 Removing the power supply unit

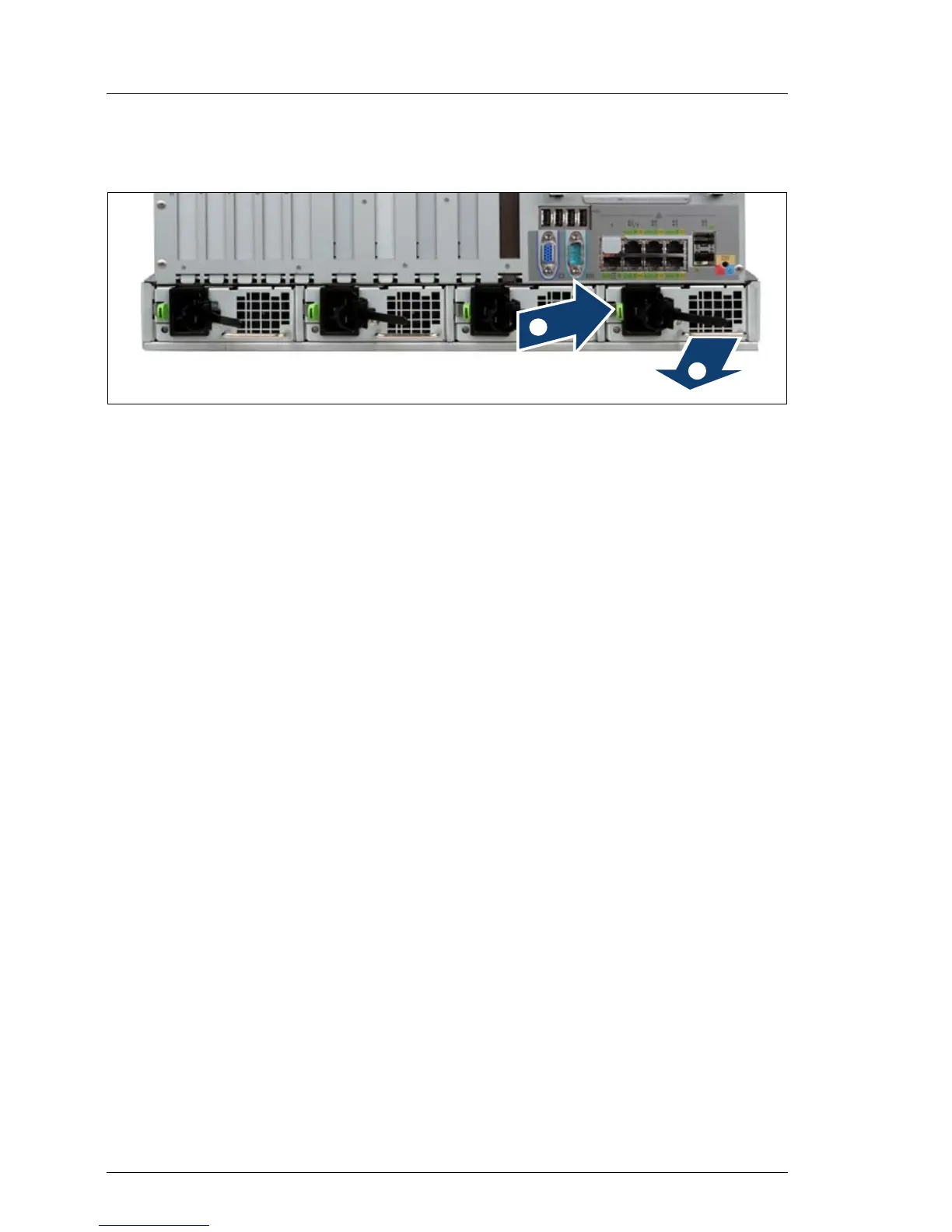

Figure 16: Unlocking and removing the power supply unit
Ê Remove the power cord from the cable strap. You can loosen the cable strap
by opening the small locking lever.
Ê Remove the power cord from the installed power supply unit.
Ê Press the green release lever (1) and pull out the power supply unit in the
direction of the arrow (2). Grip the handle while pulling the power supply.
Ê Completely remove the defective power supply unit from the bay.
V CAUTION!
Never leave the bay for the power supply unit empty for more than
two minutes during operation. Otherwise, excessive temperatures
could damage system components.
/
