216 Upgrade and Maintenance Manual RX900 S2
Processors
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12052-001.fm
4. "Sliding the server out of the rack" on page 42
5. "Opening the server" on page 44
6. "Removing the CPUMEMR" on page 190
10.3.3 Removing the heat sink

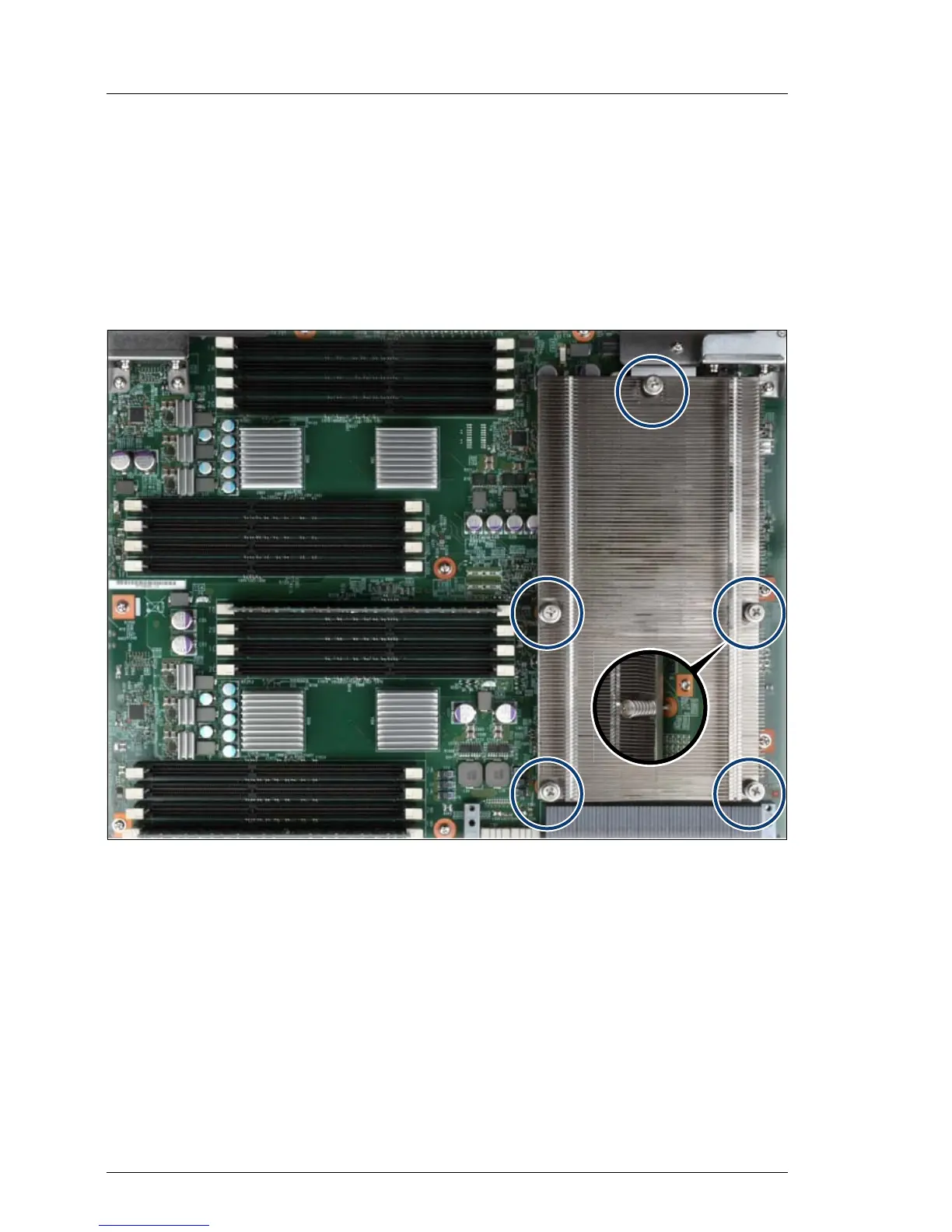

Figure 128: Removing the heat sink
Ê Loosen the captive screws of the heat sink alternately until they are fully
released.
Ê Loosen the heat sink by turning it back and forth and then lift it out.
