15.3.6 Installing the chassis ID board

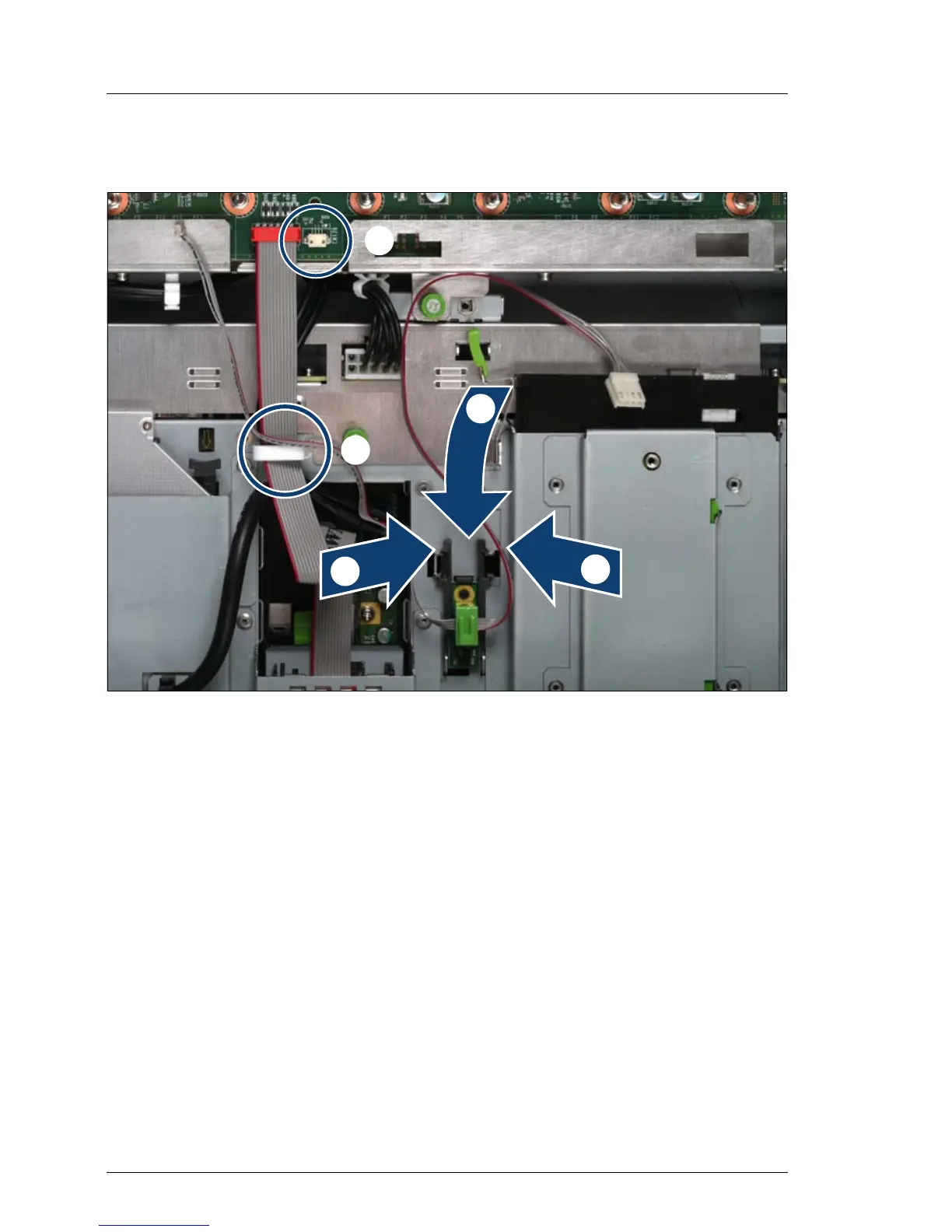

Figure 208: Installing the chassis ID board holder
Ê Press the plastic tongues of the chassis ID holder slightly inward as
indicated by the arrows (1) and slide the chassis ID board holder inward until
it clicks into place (2).
Ê Connect the chassis ID board cable at the baseboard (3) and close the cable
clamp (4).
