Fujitsu PRIMERGY RX900 S2 - Removing the Front Panel Module; Starting the Task

234 Upgrade and Maintenance Manual RX900 S2
Front panel and external connectors
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12054-001.fm
12.2.2 Starting the task
Ê Perform the following procedures:
1. "Opening the rack door" on page 40
2. "Shutting down the server" on page 41
3. "Sliding the server out of the rack" on page 42
4. "Opening the server" on page 44
5. Remove all CPUMEMRs, see "Removing the CPUMEMR" on page 190
I Before removing the CPUMEMRs, take a note on the installation
slot number for each CPUMEMR. Make sure that you reinstall the
CPUMEMR in the slot it was located before the replacement.
6. "Removing the control panel" on page 229
12.2.3 Removing the front panel module

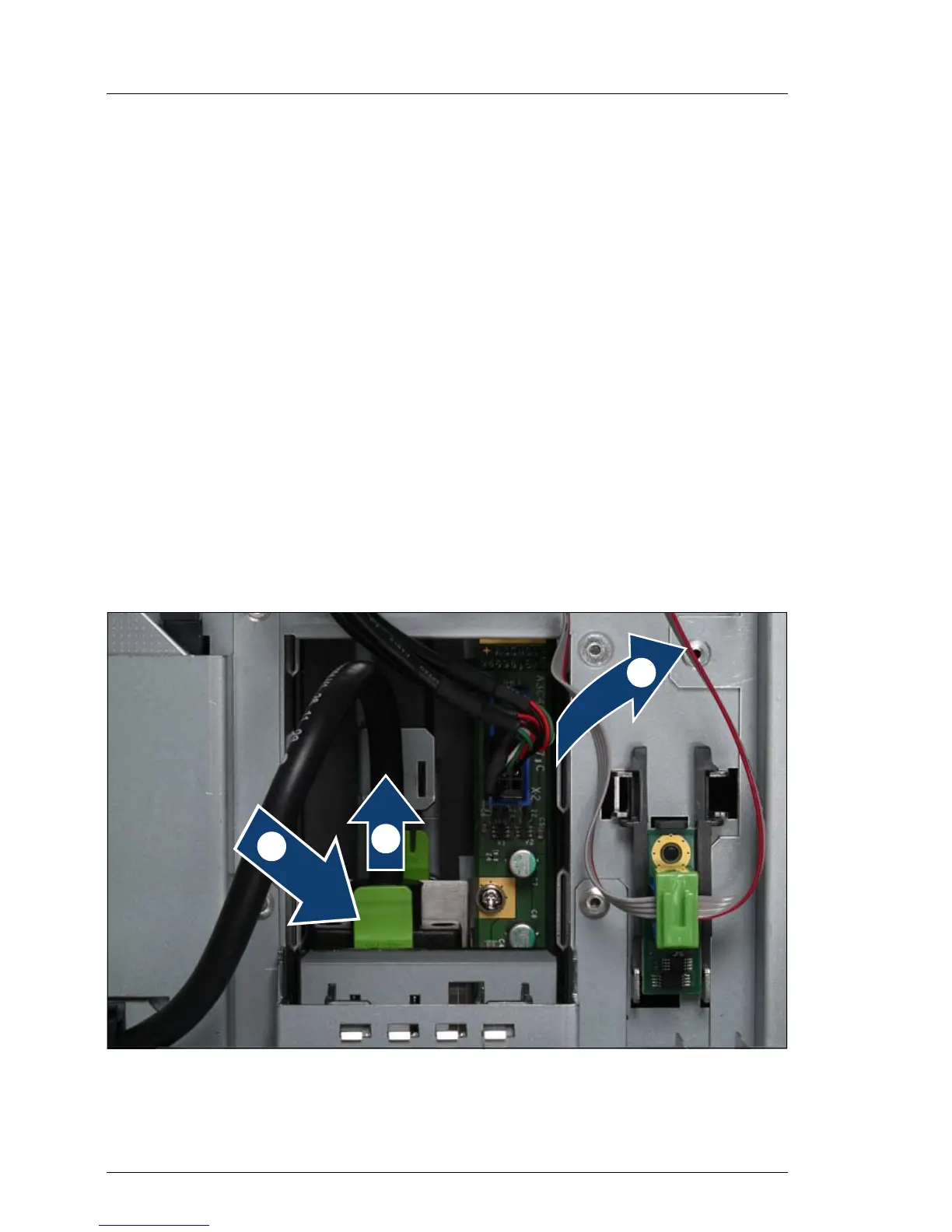

Figure 142: Disconnecting the USB cable and the video connector
Ê Disconnect the USB cable (1).
0
/
1
