Ê Carefully insert the expansion card in the slot (1).
Ê Insert the slot lock (2) and relock the slot (3).
Ê If applicable, connect the cables on the expansion card.
8.9.6 Installing the PCI Riser (if applicable)

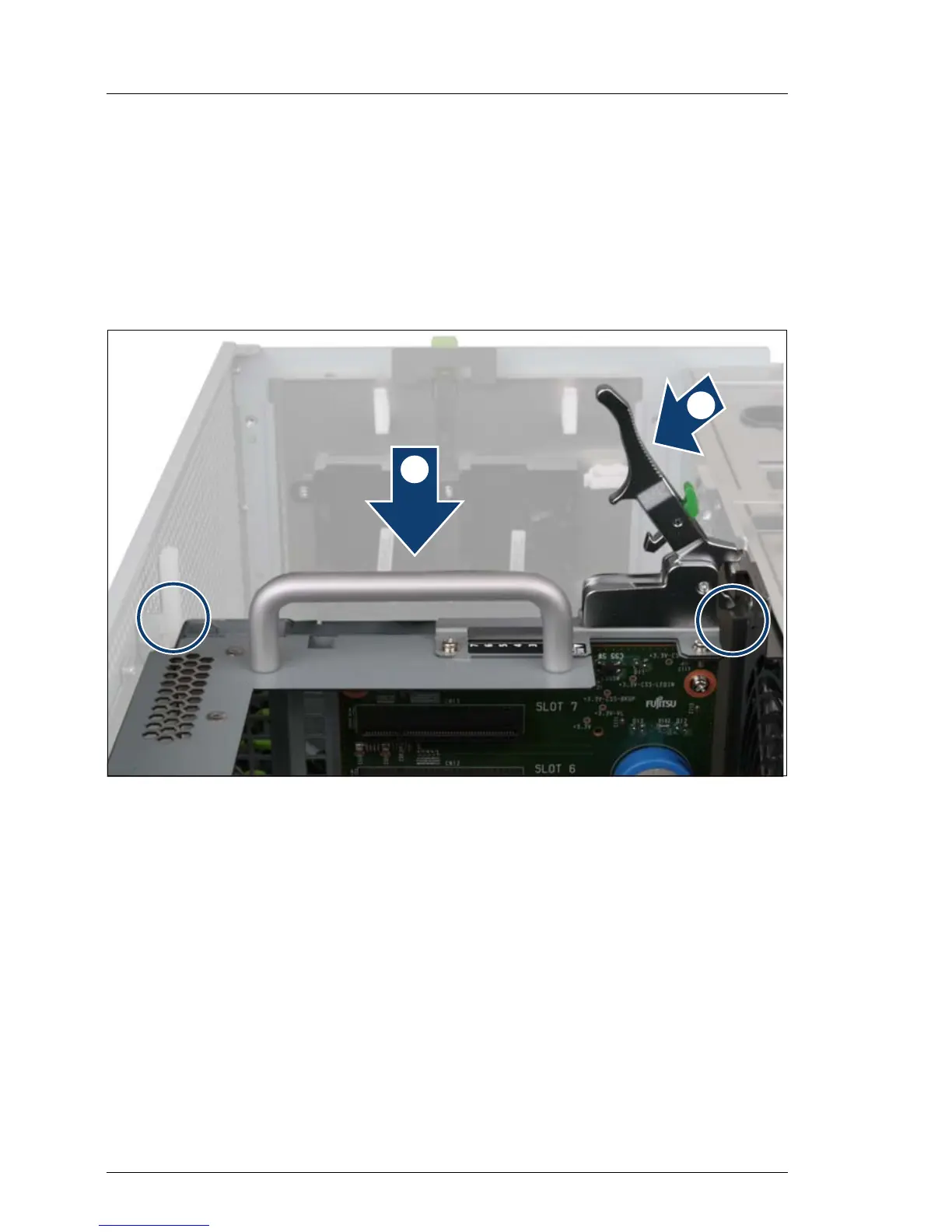

Figure 93: Installing the PCI Riser
Ê Carefully insert the PCIR in the slot (1).
Ê Lock the PCIR by pushing down the handle (2).
8.9.7 Completing the task
Ê Perform the following procedures to complete the task:
1. "Installing the rear cover" on page 48
2. "Mounting the server in the rack" on page 49
3. "Bringing the server back to operation" on page 51
