RX900 S2 Upgrade and Maintenance Manual 143
Expansion cards and BBU
8.6.6 Removing the engaging hooks

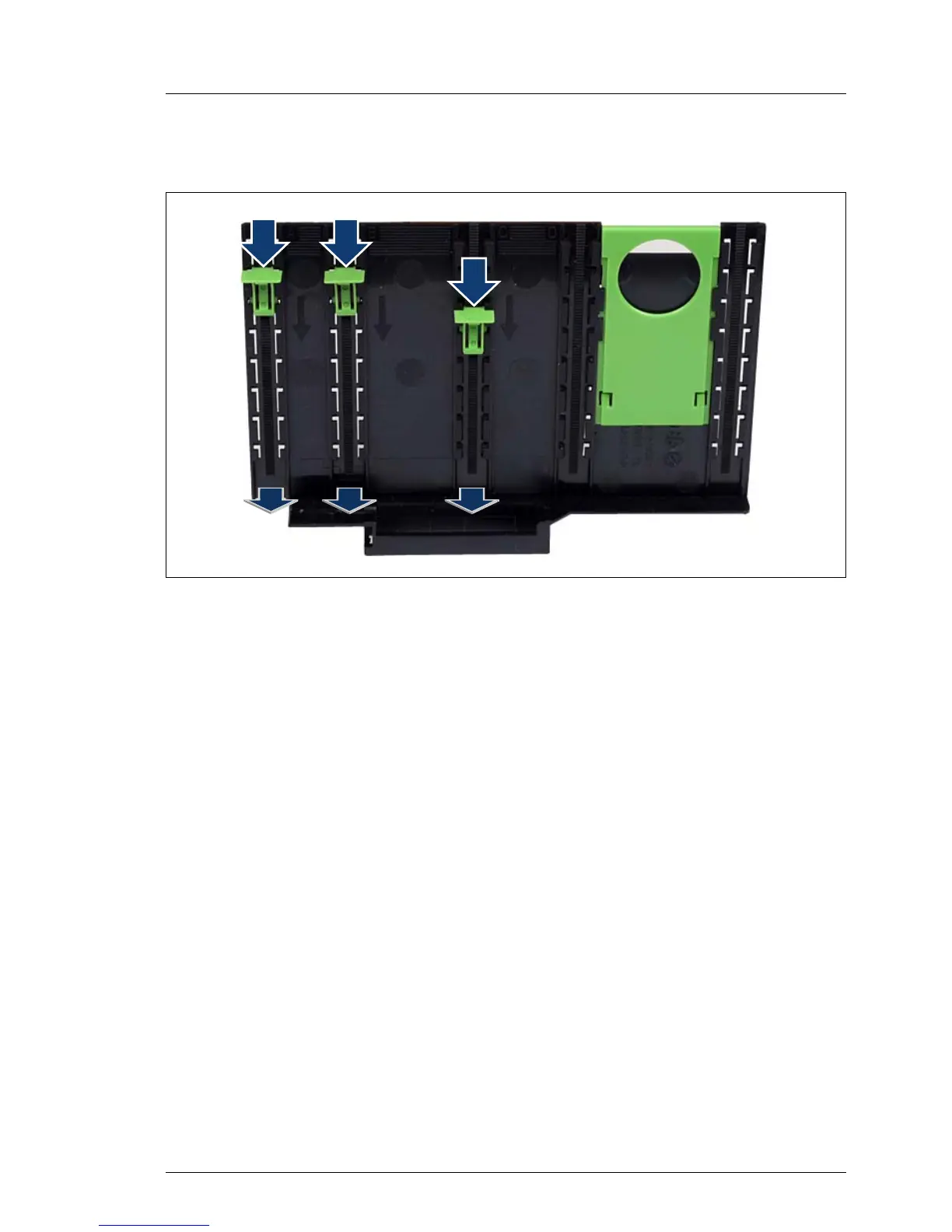

Figure 77: Removing the engaging hooks
Ê Push the green engaging hooks down in the direction of the arrows (1) until
they disengage from the removal tool.
Ê Remove the engaging hooks (2) and keep them in a safe place.
8.6.7 Inserting an expansion card in the removal tool
Please choose one of the following procedures:
– "Long expansion cards" on page 128
– "Short expansion cards such as the network adapter D2735" on page 128
Complete the procedure by performing "Check the result of the installation for
all expansion cards" on page 129.
//
/
