RX900 S2 Upgrade and Maintenance Manual 239
Front panel and external connectors
6. Remove all CPUMEMRs, see "Removing the CPUMEMR" on page 190
I Before removing the CPUMEMRs, take a note on the installation
slot number for each CPUMEMR. Make sure that you reinstall the
CPUMEMR in the slot it was located before the replacement.
7. "Removing the control panel" on page 229
8. "Removing the front panel module" on page 234
12.3.3 Removing the USB board

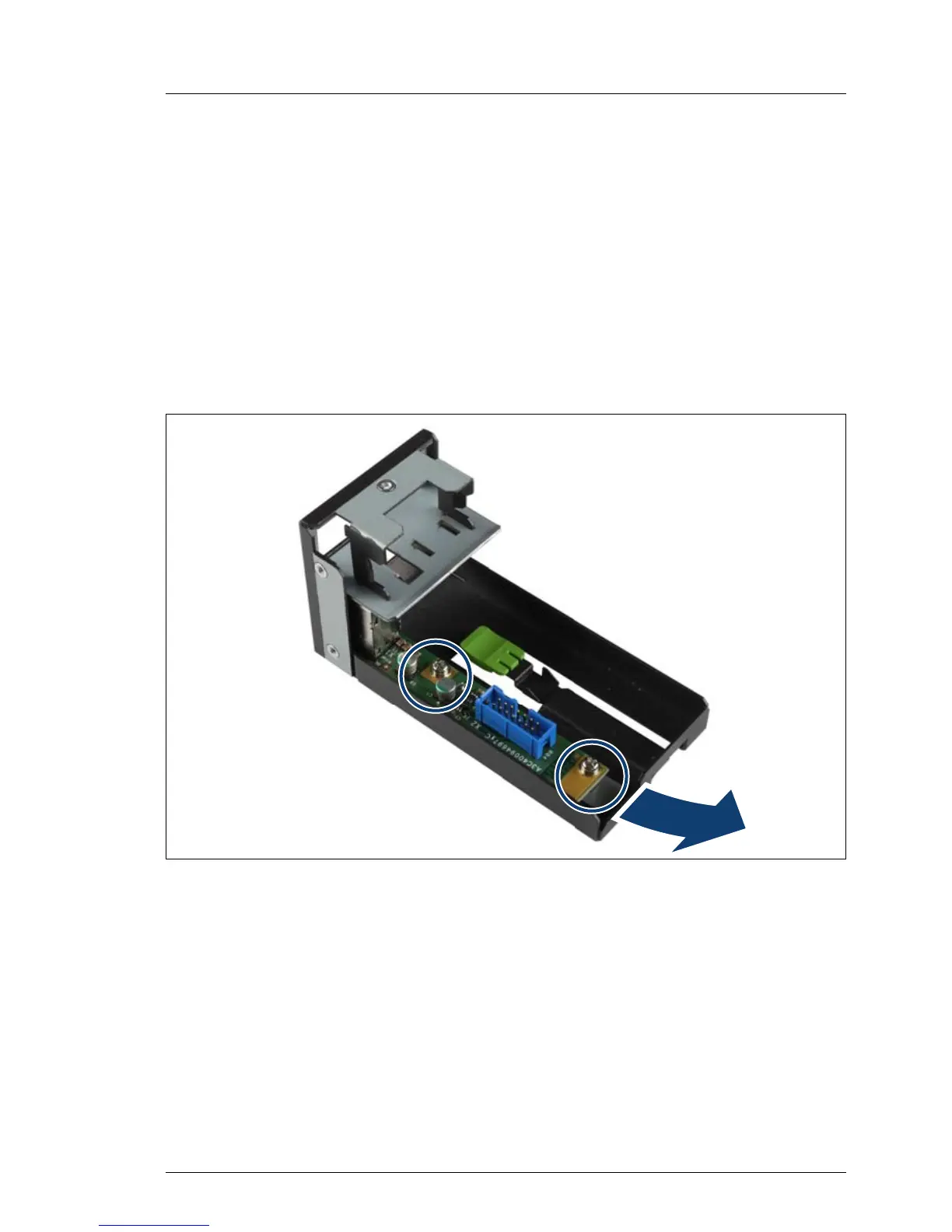

Figure 146: Removing the USB board from the front panel module
Ê Remove both screws (see circle).
Ê Push the USB board backward out.
