6. Remove all CPUMEMRs, see "Removing the CPUMEMR" on page 190
I Before removing the CPUMEMRs, take a note on the installation
slot number for each CPUMEMR. Make sure that you reinstall the
CPUMEMR in the slot it was located before the SAS backplane
replacement.
7. Unlock and remove all HDD/SSD modules, see "Unlocking the
HDD/SSD module" on page 82 and "Removing the HDD/SSD module"
on page 86.
I Before removing the HDD/SSD modules, take a note on the bay
number for each module. Make sure that you reinstall the module
in the bay it was located before the SAS backplane replacement.
6.4.3 Sliding the local service display outward

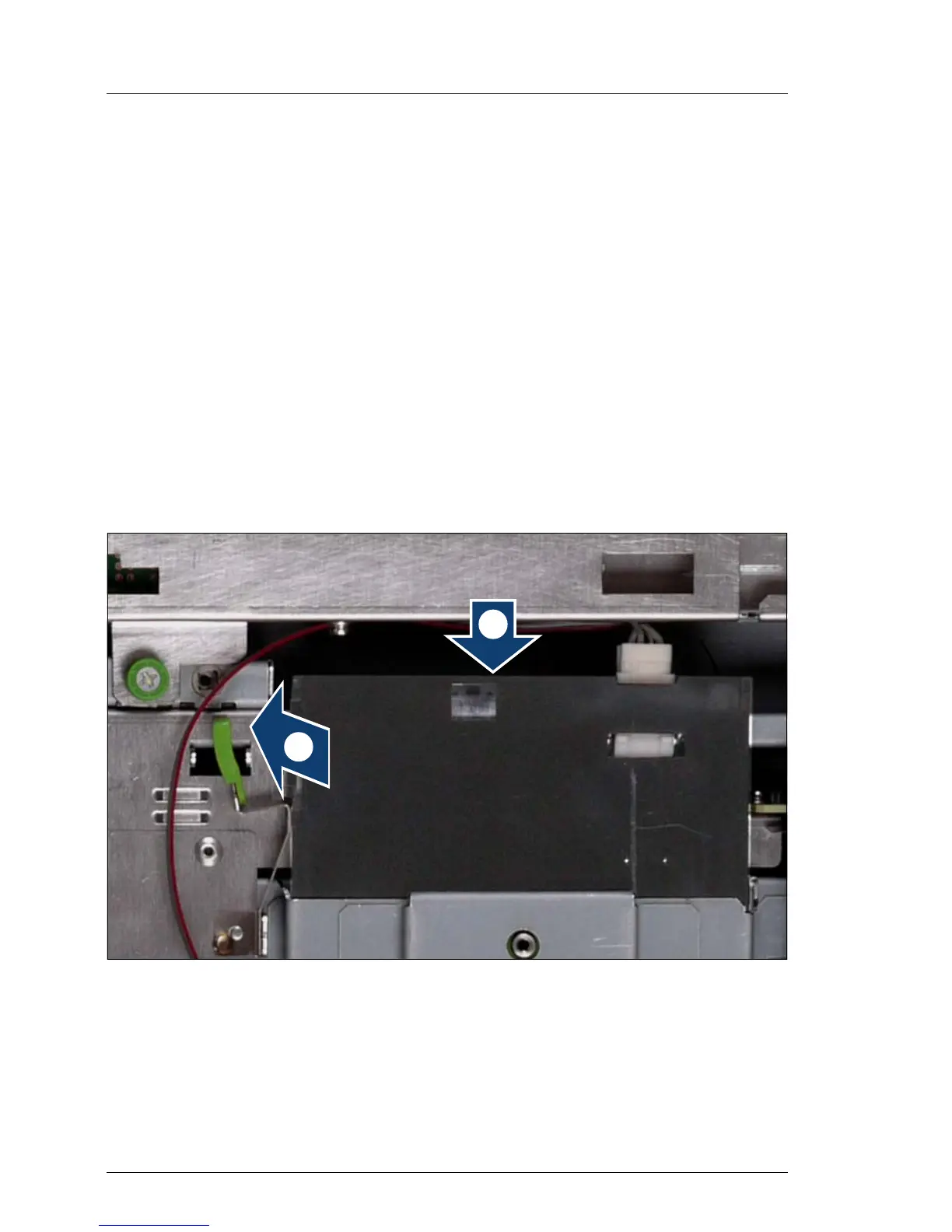

Figure 39: Sliding the local service display outward
Ê Unlock the local service display (1).
Ê Slide the local service display outward a few centimeters so that you have
free access (2).
/
