Ê Insert the slot lock (2) and relock the slot (3).
Ê If applicable, connect the cables on the expansion card.
8.7.6 Installing the PCI Riser (if applicable)

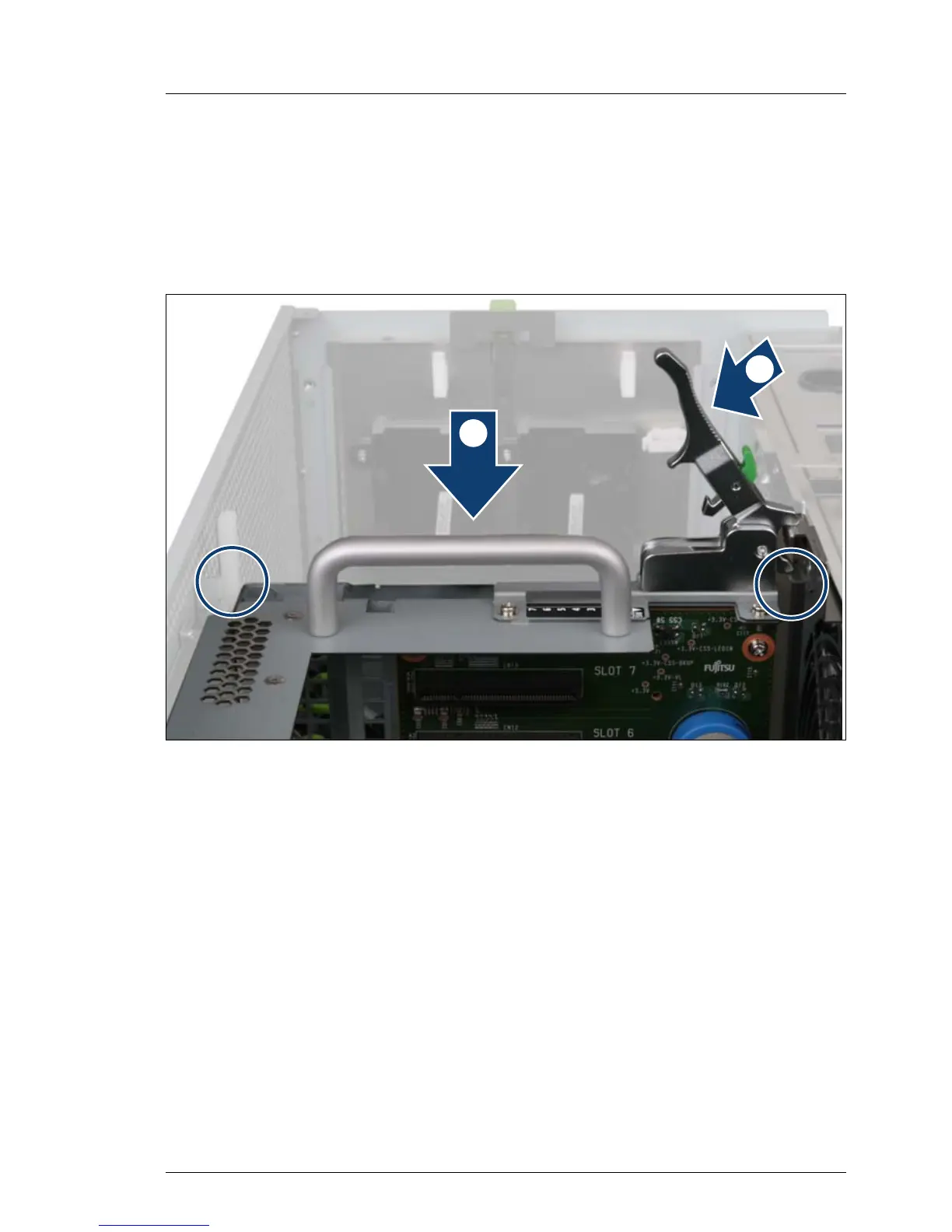

Figure 85: Installing the PCI Riser
Ê Carefully insert the PCIR in the slot (1).
Ê Lock the PCIR by pushing down the handle (2).
