8.11.4 Installing the BBU in the BBU holder

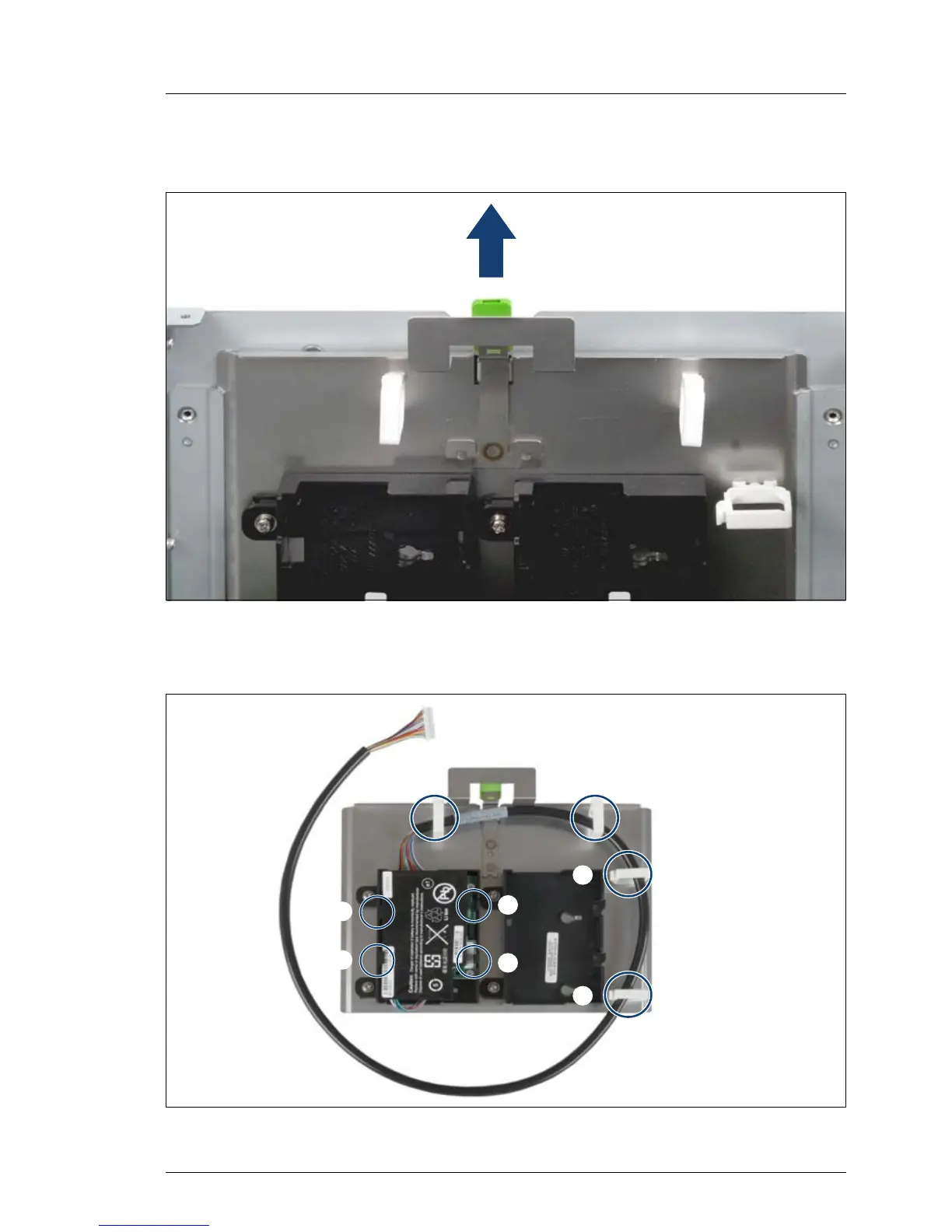

Figure 100: Removing the BBU holder
Ê Remove the BBU holder from the chassis by lifting it with the green handle.
Figure 101: Installing the BBU in the BBU holder
/
0
0
1 1
1
/
1
C
A
C
B
