RX900 S2 Upgrade and Maintenance Manual 197
Main memory

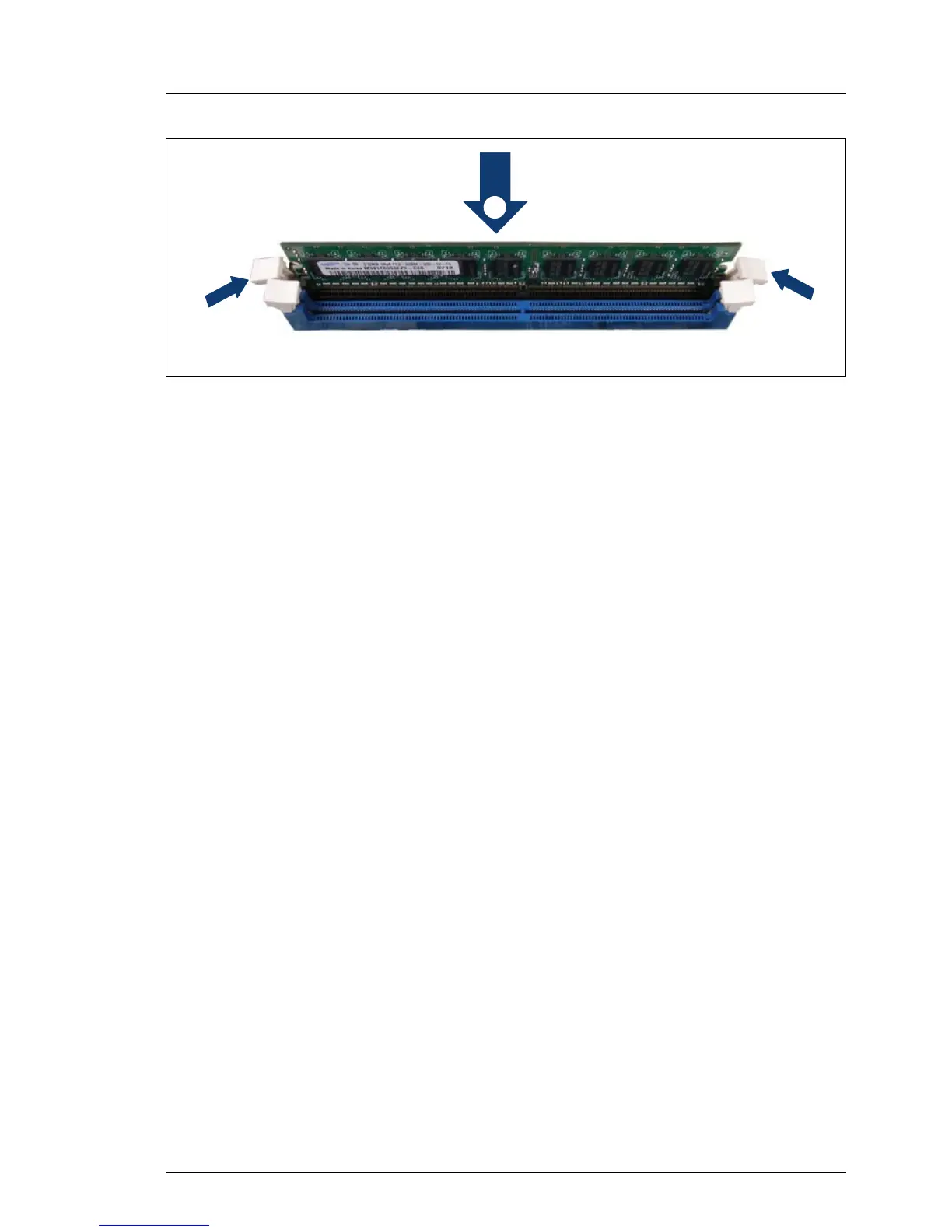

Figure 116: Installing a DIMM memory module
Ê Carefully press the DIMM memory module into the slot (1) until the securing
clips on both sides of it engage (2).
9.4.5 Completing the task
Ê Perform the following procedures to complete the task:
1. "Inserting the CPUMEMR in the slot" on page 186
2. "Closing the server" on page 47
3. "Mounting the server in the rack" on page 49
4. "Bringing the server back to operation" on page 51
5. Enter the BIOS menu, select the CPUMEMR where the replaced DIMM
memory module is located and enable the replaced DIMM memory
module.
6. "Closing the rack door" on page 51
/
