Ê Remove the four screws (see circles) to remove the drive frames.
Ê Put the old optical drive aside.
Ê Fasten the drive frames at the new optical drive with the four supplied
screws (see circles).
11.1.5 Installing the optical drive

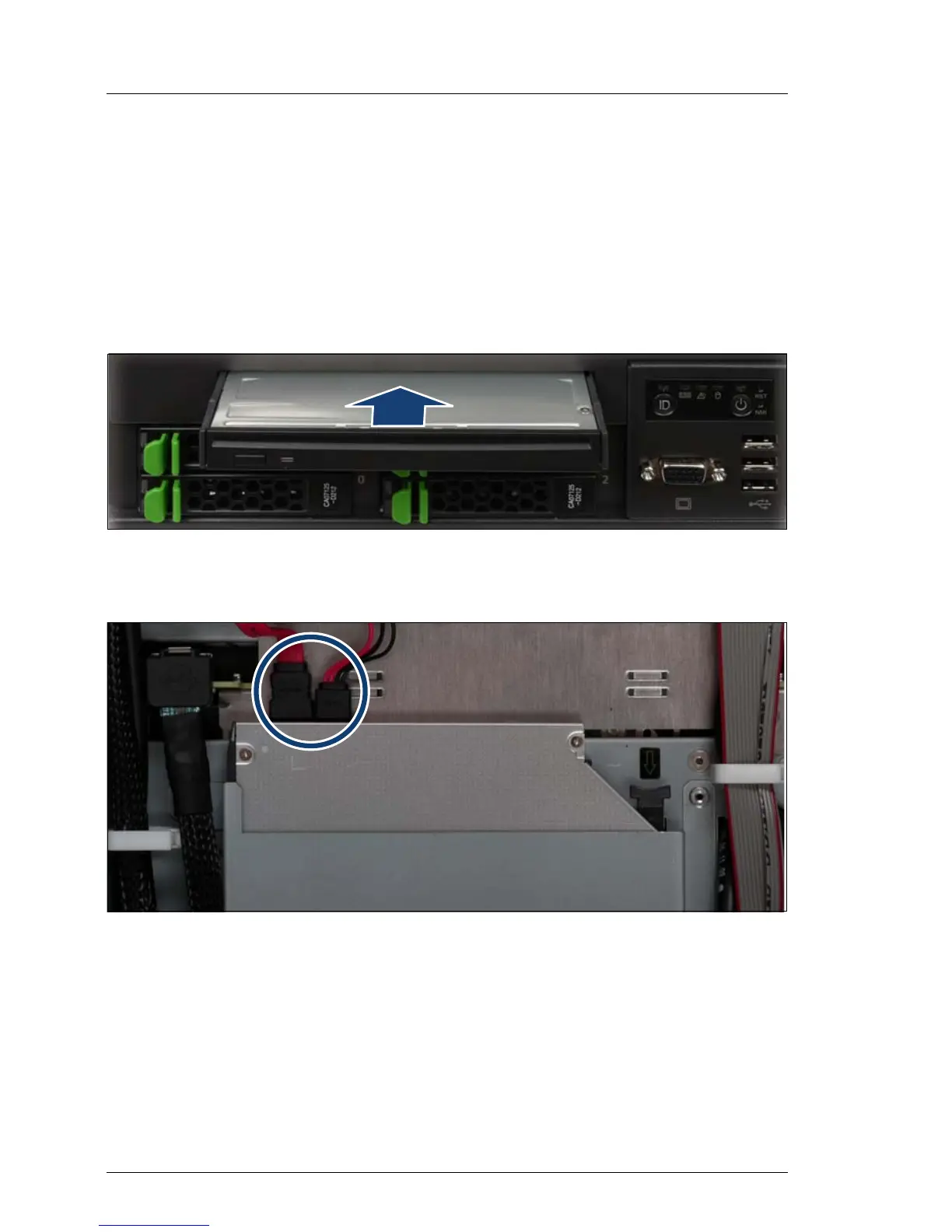

Figure 134: Sliding the optical drive in the bay
Ê Slide the optical drive into the bay until it clicks into place.
Figure 135: Connecting the SATA and the power cable
Ê Connect the SATA and the power cable on the back of the optical drive.
