Removing the air guide

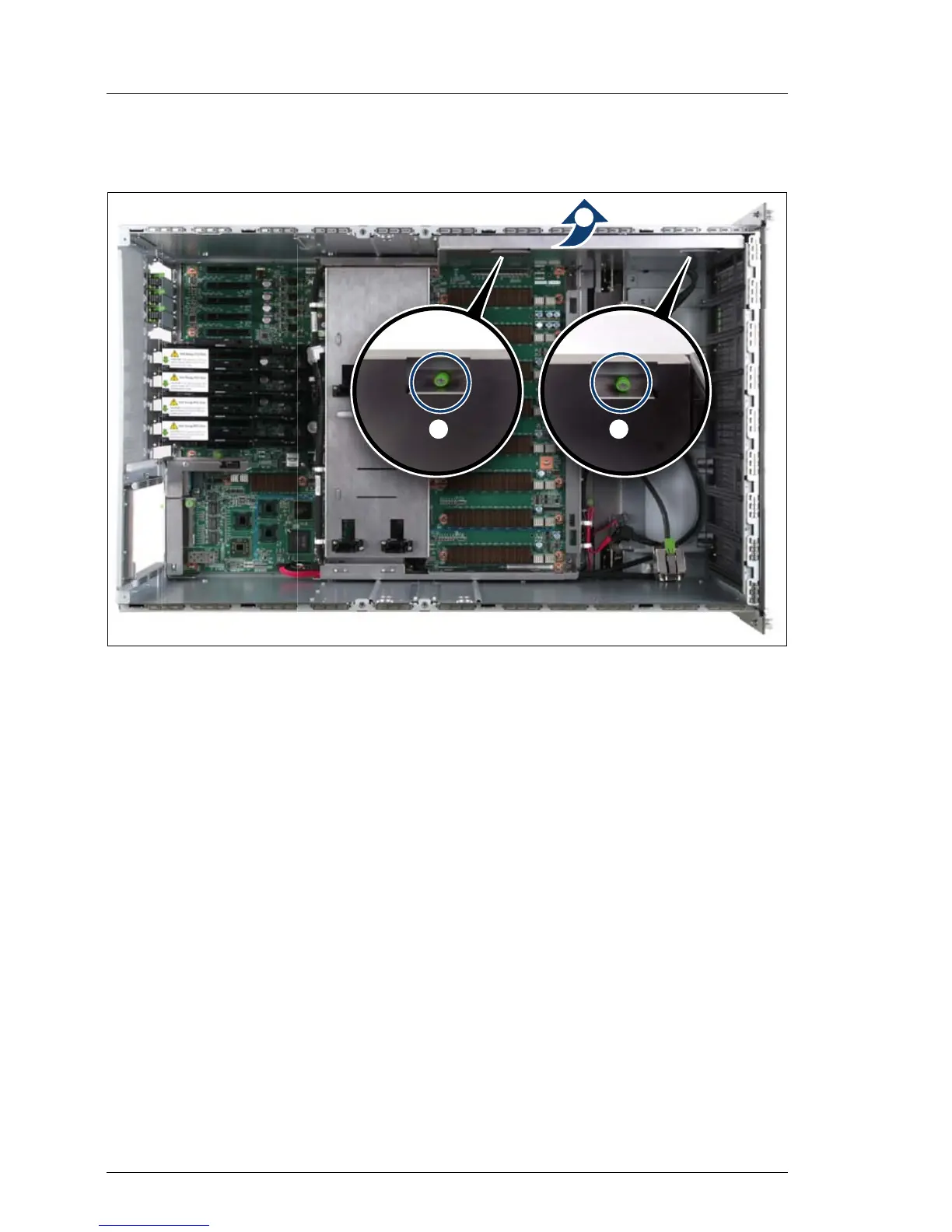

Figure 214: Removing the air
guide
Ê
Loosen the captive screws
(1).
Ê
Lift the air guide out of the chassis (2).
/
/
