342 Upgrade and Maintenance Manual RX900 S2
Cables
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12057-001.fm
15.5.8 Removing the baseboard

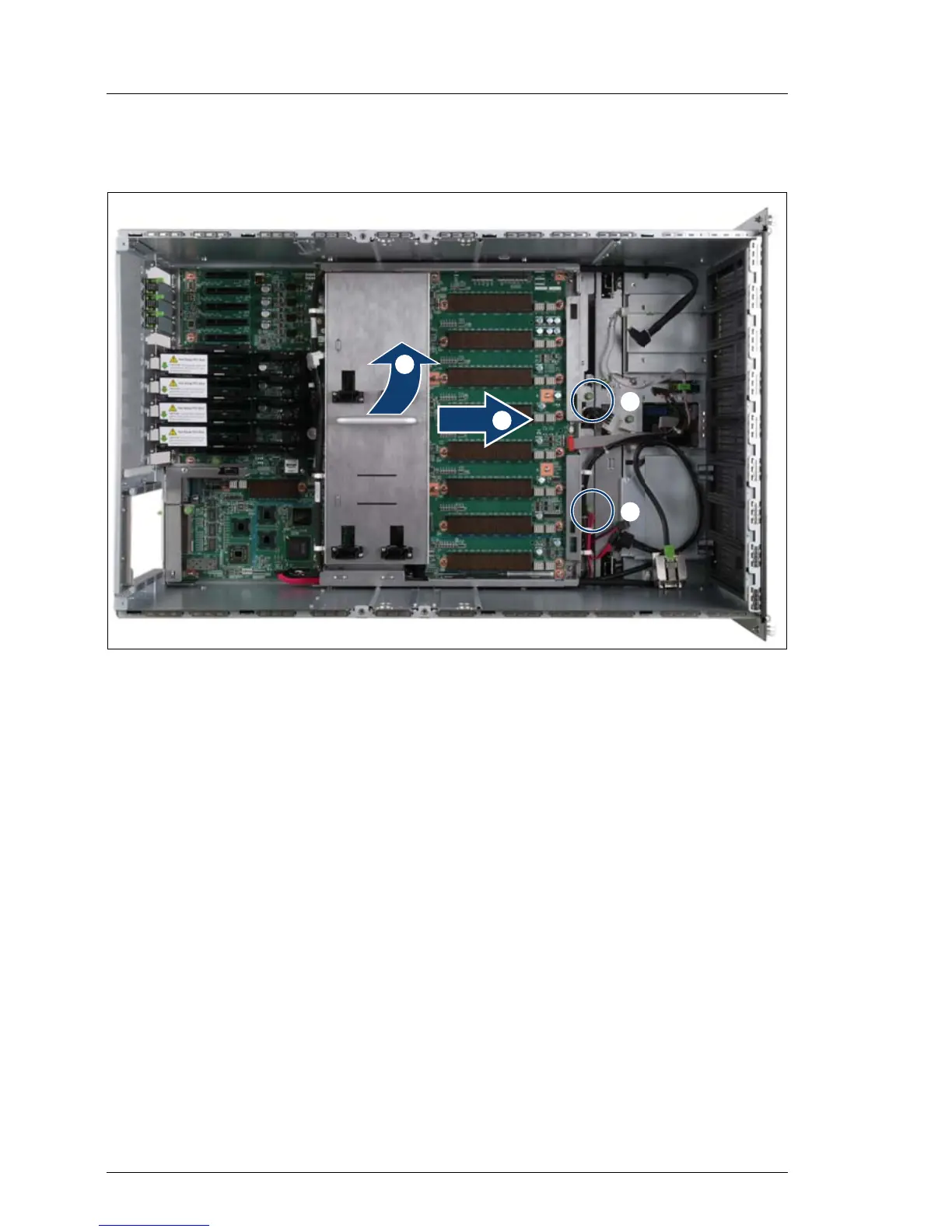

Figure 231: Removing the baseboard
Ê Loosen the captive screws (1).
Ê Slide the baseboard approximately 1 cm in the direction of the arrow (2).
V CAUTION!
Make sure that you have removed all power supply units before
removing the baseboard. Otherwise, the power supply units or the
power distribution board might be damaged.
Ê Carefully lift the baseboard out of the chassis by using the handle (3).
/
/
