Fujitsu PRIMERGY RX900 S2 - Inserting the SFP+ Transceiver Module

116 Upgrade and Maintenance Manual RX900 S2
Expansion cards and BBU
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12050-001.fm

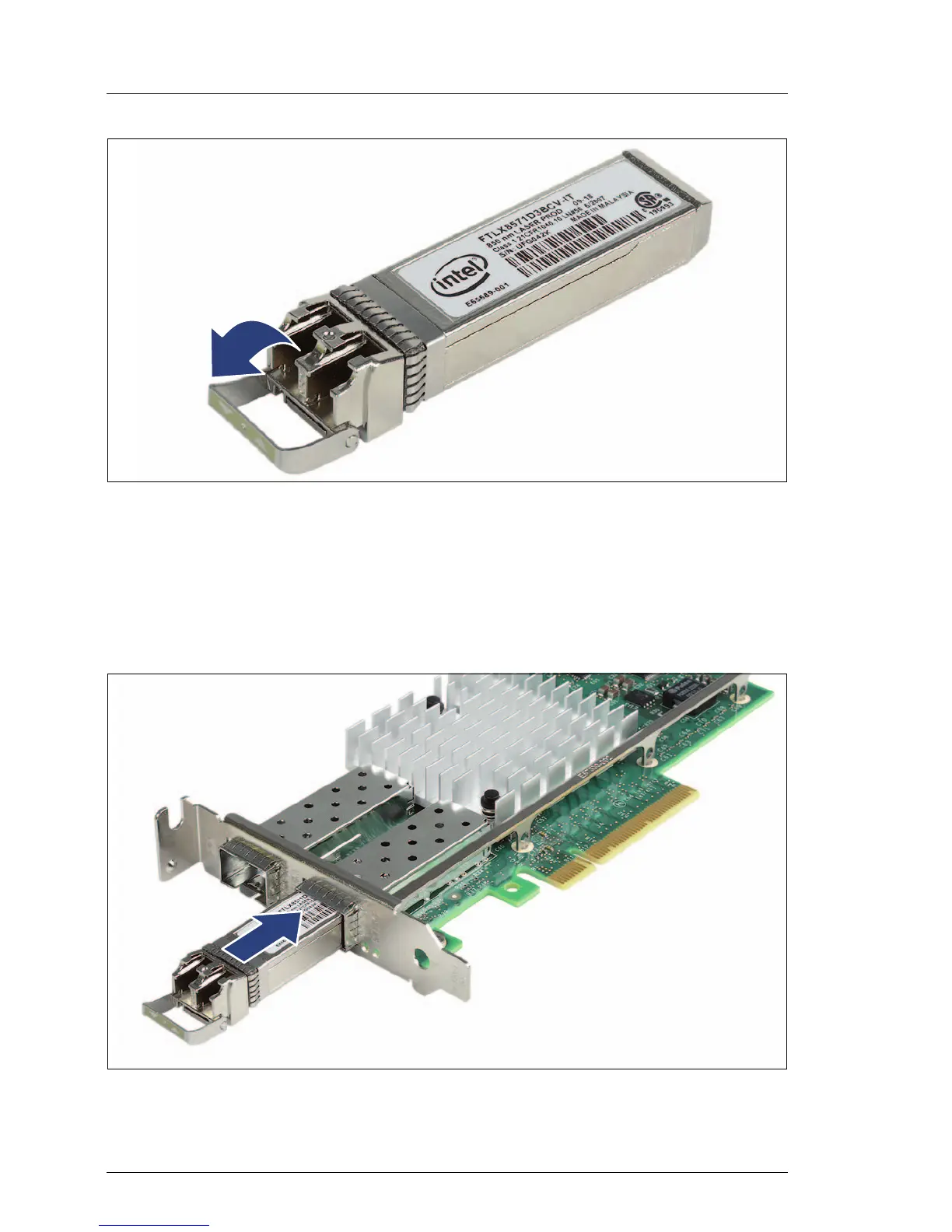

Figure 55: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module.
8.2.3 Inserting the SFP+ transceiver module
Figure 56: Inserting the SFP+ transceiver module
