Fujitsu PRIMERGY RX900 S2 Upgrade And Maintenance Manual

48 Upgrade and Maintenance Manual RX900 S2
Basic procedures
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-12046-001.fm
Ê Place the front cover onto the server such that there is approximately 1 cm
distance to the front.
Ê Push the front cover as far as possible in the direction of the arrow.
Ê Fasten the captive screw on the cover (see circle).
4.6.2 Installing the rear cover

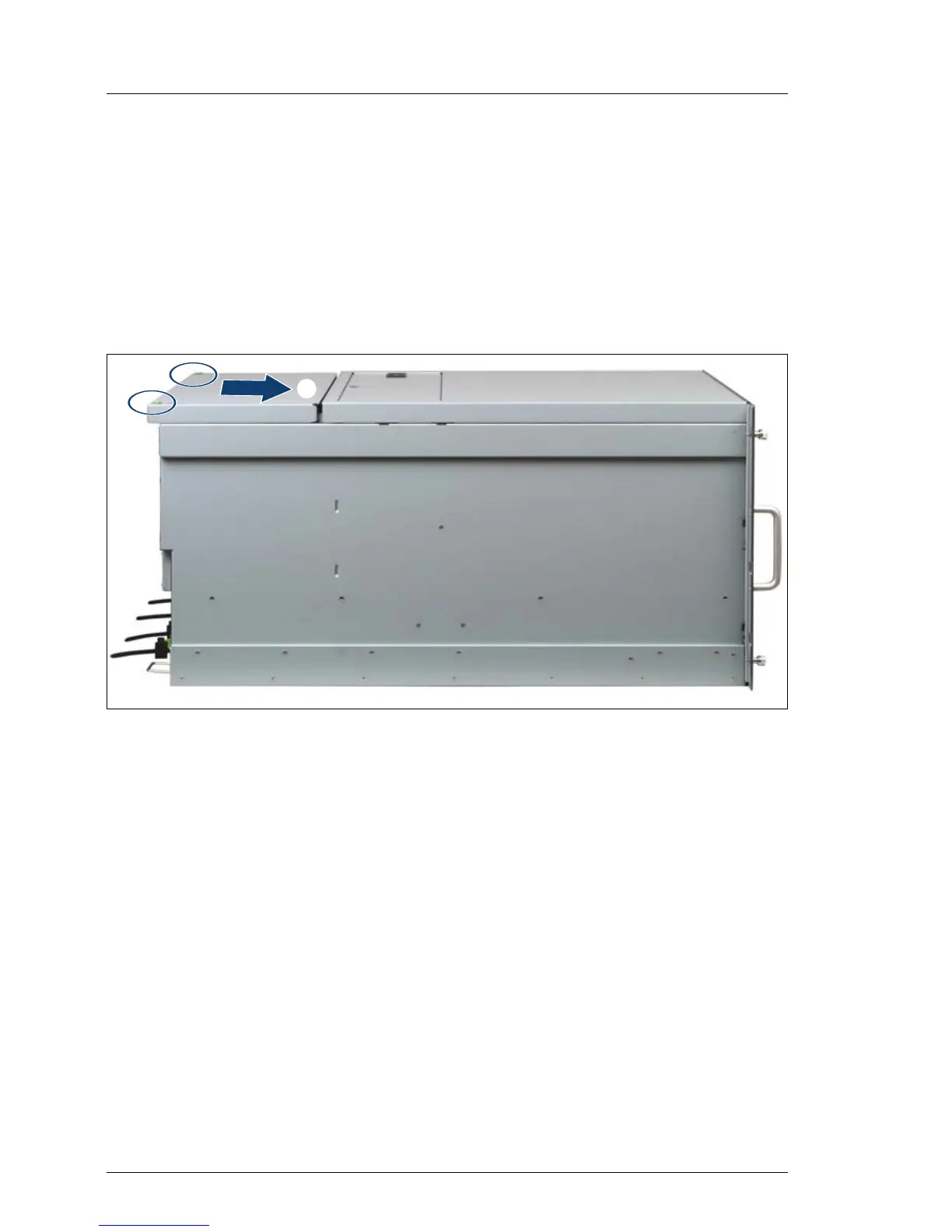

Figure 9: Installing the rear cover
Ê Place the rear cover onto the server such that it projects approximately 1 cm
at the back.
Ê Push the rear cover as far as possible in the direction of the arrow.
Ê Fasten the captive screws on the cover (see circles).
/
0

Fujitsu PRIMERGY RX900 S2 Specifications

General

Brand	Fujitsu
Model	PRIMERGY RX900 S2
Category	Server
Language	English
