15.4.15 Inserting the CPUMEMR guide

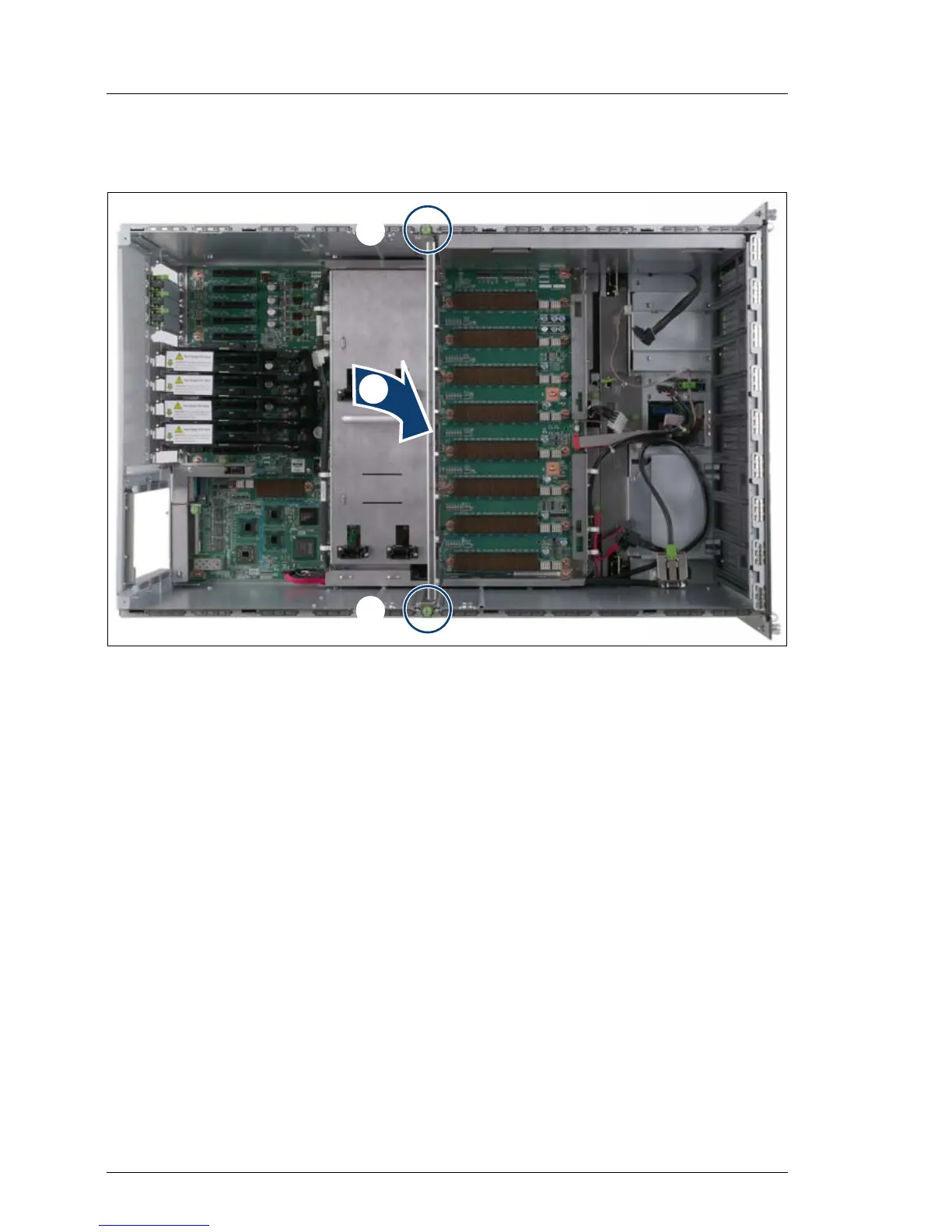

Figure 222: Inserting the CPUMEMR guide
Ê Insert the CPUMEMR guide in the installation slot (1).
Ê Fasten the captive screws of the CPUMEMR guide (2).
